Panduit LCMA120-12-L | Pan-Lug LCMA120-12-L Comp. Lug, Metric, Tin ...
Description
Description

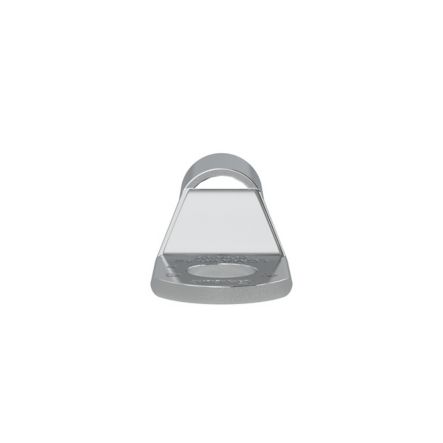

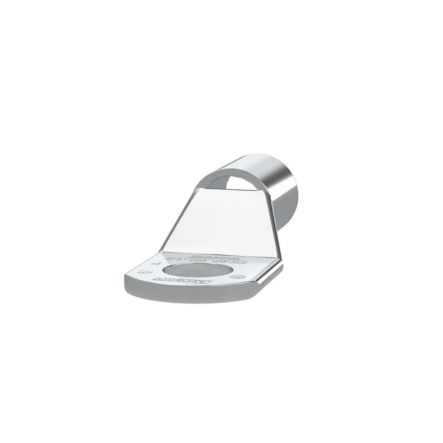

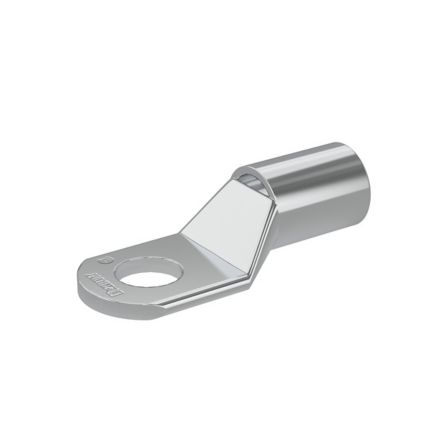

The LCMA120-12-L Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Panduit LCMA120-12-L Copper Compression Metric Lug, 1 Hole, 120mm2 Wire, M12 Stud
Specifications
Specifications
Panduit - LCMA120-12-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCMA120-12-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA120-12-L |
| Item Description | Pan-Lug LCMA120-12-L Comp. Lug, Metric, Tin Plt Copper, Strt, PK50 |
| Inside Diameter (In.) | 0.59 |
| Inside Diameter (mm) | 14.98 |
| Outer Diameter (In.) | 0.73 |
| Outer Diameter (mm) | 18.54 |
| Product Type | Copper Compression Connectors - Metric Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Metric Class 2r Copper Conductor Size (mm²) | 120 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 95 |
| Stud Hole Size (mm) | 12 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.96 |
| Barrel Length (mm) | 24.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.08 |
| Tongue Width (mm) | 27.5 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.5 |
| Overall Length (In.) | 2.55 |
| Overall Length (mm) | 64.7 |
| Finish/Coating | Tin-Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 1-1/16 |
| Wire Strip Length (mm) | 26.9 |
| Type | INDUSTRIAL OTHER |
| UNSPSC Code | 39121400 |
Panduit - LCMA120-12-L - Package Information
| UPC | 07498376957 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0528 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCMA120-12-L - Videos
| Video 1 | Click to View |
|---|
