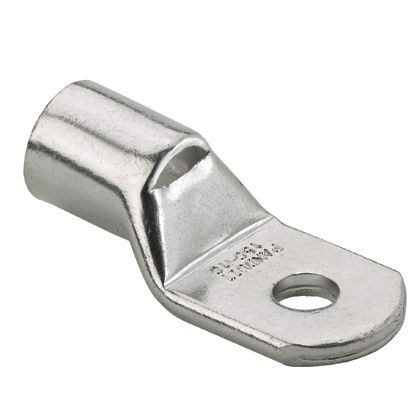

Panduit LCMA150-12-X | Pan-Lug Comp. Lug, 150, Tin Plt Copper, Strt...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Panduit Pan-Lug Compression Lug, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 150 sq-mm, 120 sq-mm Conductor, Die Code: P66, 35 kV, M12 Stud, Round/Straight Tongue, 30.5 mm W x 4.5 mm THK Tongue, 70.5 mm Overall Length, Standard With Inspection Window Barrel, 16.5 mm ID x 70.5 mm OD x 27.5 mm L Barrel, 29 mm L Wire Strip, 18 mm Wrench Clearance, 90 deg C, 14 mm Mounting Hole, Copper
Panduit - LCMA150-12-X - Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- For use with flexible copper conductors
- 150 sq-mm class 2, 120 sq-mm class 5F and class 6F
Specifications
Specifications
Panduit - LCMA150-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA150-12-X |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 12 |
| Metric Class 2r Copper Conductor Size (mm²) | 150 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 120 |
| Barrel Length (mm) | 27.5 |
| Tongue Width (mm) | 30.5 |
| Tongue Thickness (mm) | 4.5 |
| Overall Length (mm) | 70.5 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | White |
| UPC | 07498376961 |
Panduit - LCMA150-12-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
