Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.

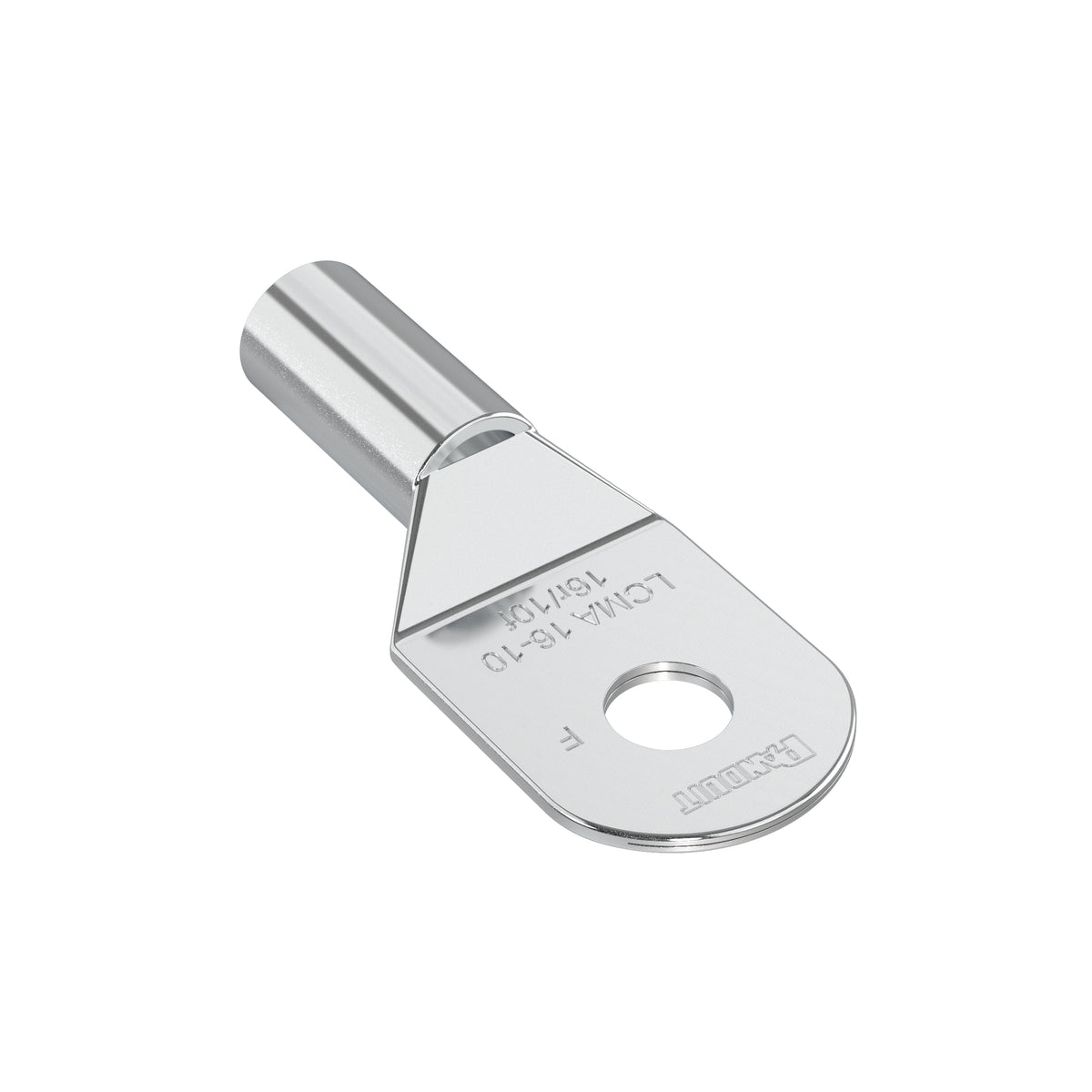

The LCMA16-10-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full con ductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Panduit Pan-Lug Compression Connector Lug, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 16 sq-mm Conductor, Die Code: P21, 35 kVAC, M10 Stud, Round/Straight Tongue, 15 mm W x 1.1 mm THK Tongue, 36.7 mm Overall Length, Seamless/Standard with Inspection Window Barrel, 5.5 mm ID x 14.5 mm L Barrel, 65 A, 16 mm L Wire Strip, 10.2 mm Wrench Clearance, Tin Plated Finish, 90 deg C, 11 mm Dia Mounting Hole, Copper
Panduit - LCMA16-10-C - Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- For use with flexible copper conductors
- 16 sq-mm class 2, 10 sq-mm class 5F and class 6F
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCMA16-10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA16-10-C |
| Barrel | Standard |
| Gauge | 2 Awg |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 10 |
| Metric Class 2r Copper Conductor Size (mm²) | 16 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 10 |
| Barrel Length (mm) | 14.5 |
| Tongue Width (mm) | 15 |
| Tongue Thickness (mm) | 1.1 |
| Overall Length (mm) | 36.7 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Red |
| UPC | 07498376935 |
Panduit - LCMA16-10-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - LCMA16-10-C - Videos
| Panduit LCMA16-10-C Video 1 | Click to View |
|---|
