Brand: Panduit
|
SKU:
LCMA185-10-X
Panduit LCMA185-10-X | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376964
Regular price
$21.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA185-10-X | Tin-Plated CopperCompression Connectors - Me...
Regular price
$21.09
Unit price
Description
Description

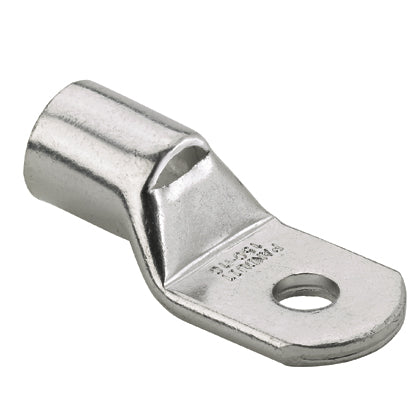

Panduit Pan-Lug Compression Lug, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 185 sq-mm, 150 sq-mm Conductor, Die Code: P76, 35 kV, M10 Stud, Round/Straight Tongue, 33.5 mm W x 4.6 mm THK Tongue, 72.5 mm Overall Length, Standard With Inspection Window Barrel, 18.6 mm ID x 23 mm OD x 28.2 mm L Barrel, 29.7 mm L Wire Strip, 16.5 mm Wrench Clearance, 90 deg C, 11 mm Mounting Hole, Copper
Features + Benefits
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- For use with flexible copper conductors
- 185 sq-mm class 2, 150 sq-mm class 5F and class 6F
Panduit LCMA185-10-X | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376964 Key Specs
| Product Type | Tin-Plated CopperCompression Connectors - Metric Lugs |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (mm) | 72.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 28.2 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| Sub Brand | Pan-Lug |
| Wire Strip Length (mm) | 29.7 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window. |
Panduit LCMA185-10-X | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376964 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCMA6-5-C Product Page! | Download and View |
| Press Releases | Press Release - Metric_PR_web_3-30a | Download and View |
| Product Bulletins | Metric Lugs: PCCB13 | Download and View |
Panduit LCMA185-10-X | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376964 Environmental Information
| Panduit's RoHS Statement | Download and View |
