Brand: Panduit
|
SKU:
LCMA185-16-X

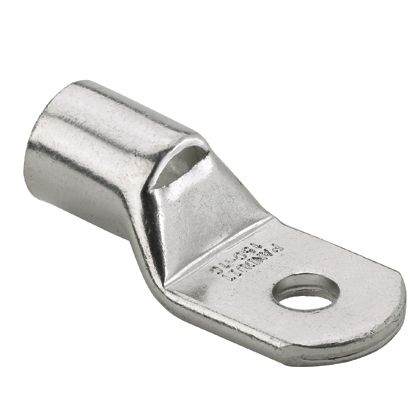

Panduit LCMA185-16-X | Pan-Lug LCMA185-16-X Copper Compression Connectors - Metric Lugs
Regular price
$247.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA185-16-X | Pan-Lug LCMA185-16-X Copper Compression Conn...
Regular price
$247.93
Unit price
Brand: Panduit
|
SKU:
LCMA185-16-X
Regular price
$247.93
Unit price
Shipping calculated at checkout.
Description
Description
Panduit LCMA185-16-X | Pan-Lug LCMA185-16-X Copper Compression Connectors - Metric Lugs
One-hole, metric conductor, standard barrel with window lug, 185mm² wire, M16 stud hole.
Specifications
Specifications
Panduit - LCMA185-16-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCMA185-16-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA185-16-X |
| Item Description | Pan-Lug LCMA185-16-X Copper Compression Connectors - Metric Lugs |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Metric Class 2r Copper Conductor Size (mm²) | 185 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 150 |
| Stud Hole Size (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (mm) | 28.2 |
| Tongue Type | Standard |
| Tongue Width (mm) | 33.5 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 4.4 |
| Overall Length (mm) | 72.5 |
| Finish/Coating | Tin-Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35000 |
| Panduit Die Index Number | P76 |
| Wire Strip Length (mm) | 29.7 |
Brand Name - LCMA185-16-X - Package Information
| UPC | 07498376966 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
