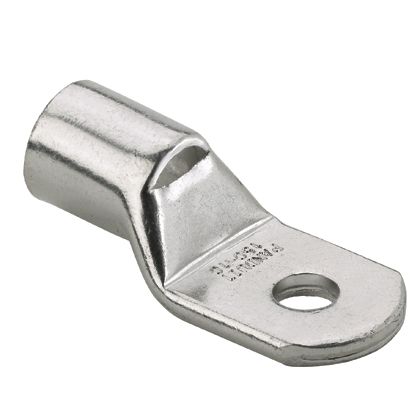

Panduit LCMA240-12-X | Pan-Lug Comp. Lug, 240, Tin Plt Copper, Strt, One 0.5" Stud, PK10
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA240-12-X | Pan-Lug Comp. Lug, 240, Tin Plt Copper, Strt...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
The LCMA240-12-X Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure fu ll conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Pan-Lug Compression Lug, 1-Hole Type LCMA, Rigid Stranded Copper Conductor, 240 sq-mm Conductor, Die Code: P87, 35 kV, M12 Stud, Round Straight Tongue, 37.5 mm W x 5.3 mm THK Tongue, 86.5 mm Overall Length, Standard With Inspection Window Barrel, 20.8 mm ID x 26 mm OD x 35 mm L Barrel, Specifications: 36.5 mm L Wire Strip, 21 mm Wrench Clearance, Tin Plated Finish, 90 deg C, 14 mm Mounting Hole, Copper
Panduit - LCMA240-12-X - Features
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- Color coded barrel
Specifications
Specifications
Panduit - LCMA240-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA240-12-X |
| UNSPSC Code | 39121400 |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 12 |
| Metric Class 2r Copper Conductor Size (mm²) | 240 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 185 |
| Barrel Length (mm) | 35 |
| Tongue Width (mm) | 37.5 |
| Tongue Thickness (mm) | 5.3 |
| Overall Length (mm) | 86.5 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| UPC | 07498376969 |
Panduit - LCMA240-12-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - LCMA240-12-X - Videos
| Panduit LCMA240-12-X Video 1 | Click to View |
|---|
