Panduit LCMA300-12-5 | CuMetricLug, 300mm², M12StudPKG5
Description
Description

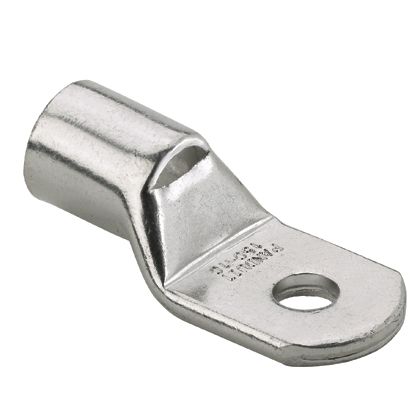

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Panduit Pan-Lug Lug Compression Connector, 1-Hole Metric, Series: LCMA, Flex Copper Conductor, 300 sq-mm Class 2, 240 sq-mm Class 5F and Class 6F Conductor, Die Code: P94, 35 kV, M12 Stud, Straight Tongue, 42.5 mm W x 5.4 mm THK Tongue, 94.5 mm Overall Length, Standard With Inspection Window Barrel, 23.5 mm ID x 29 mm OD x 40.3 mm L Barrel, 1-5/8 in L Wire Strip, 22 mm Wrench Clearance, 90 deg C, Tin Plated Copper
Panduit - LCMA300-12-5 - Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- For use with class 2 stranded copper conductors
- For use with flexible copper conductors
Specifications
Specifications
Panduit - LCMA300-12-5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA300-12-5 |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 12 |
| Metric Class 2r Copper Conductor Size (mm²) | 300 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 240 |
| Barrel Length (mm) | 40.3 |
| Tongue Width (mm) | 42.5 |
| Tongue Thickness (mm) | 5.4 |
| Overall Length (mm) | 94.5 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant,UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Green |
| UPC | 07498376973 |
Panduit - LCMA300-12-5 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
