Description
Description

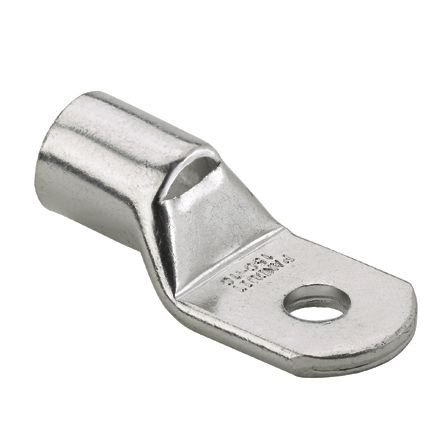

One-hole, metric conductor, standard barrel with window lug, 35mm² wire, M12 stud hole.
Panduit LCMA35-12-C Copper Compression Metric Lug, 1 Hole, 16mm2 Wire, M10 Stud, Pack Of 100
Specifications
Specifications
Panduit - LCMA35-12-C - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCMA35-12-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA35-12-C |
| Item Description | Pan-Lug LCMA35-12-C Copper Compression Connectors - Metric Lugs |
| Product Type | Copper Compression Connectors - Metric Lugs |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Metric Class 2r Copper Conductor Size (mm²) | 35 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 25 |
| Stud Hole Size (mm) | 12 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (mm) | 17.5 |
| Tongue Type | Standard |
| Tongue Width (mm) | 21.5 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 1.5 |
| Overall Length (mm) | 48 |
| Finish/Coating | Tin Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35000 |
| Panduit Die Index Number | P29 |
| Wire Strip Length (mm) | 19 |
| UNSPSC Code | 39121400 |
Panduit - LCMA35-12-C - Package Information
| UPC | 07498376942 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0485 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
