Panduit LCMA35-8-C | Pan-Lug Copper Compression Connectors - Metric...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, metric conductor, standard barrel with window lug, 35mm2 wire, M8 stud hole.

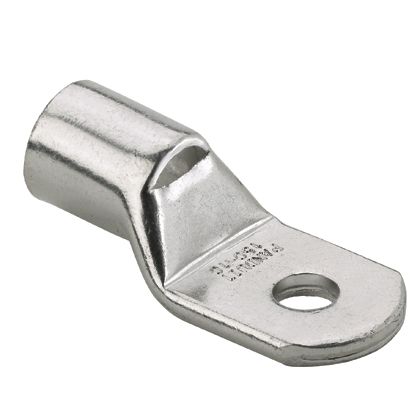

Panduit Pan-Lug Lug Compression Connector, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 35 sq-mm Class 2, 25 sq-mm Conductor, Die Code: P29, 35 kV, M8 Stud, Straight Tongue, 15.5 mm W x 2.1 mm THK Tongue, 42 mm Overall Length, Standard With Inspection Window Barrel, 8.2 mm ID x 10.4 mm OD x 17.5 mm L Barrel, 19 mm L Wire Strip, 12.3 mm Wrench Clearance, 90 deg C, 9 mm Mounting Hole, Tin Plated Copper
Panduit - LCMA35-8-C - Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- For use with flexible copper conductors
- 35 sq-mm class 2, 25 sq-mm class 5F and class 6F
Specifications
Specifications
Panduit - LCMA35-8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA35-8-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 8 |
| Metric Class 2r Copper Conductor Size (mm²) | 35 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 25 |
| Barrel Length (mm) | 17.5 |
| Tongue Width (mm) | 15.5 |
| Tongue Thickness (mm) | 2.1 |
| Overall Length (mm) | 42 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant,UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Gray |
| UPC | 07498376940 |
Panduit - LCMA35-8-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
