Panduit LCMA50-10-L | Pan-Lug LCMA50-10-L Comp. Lug, Tin Plt Copper...
Description
Description

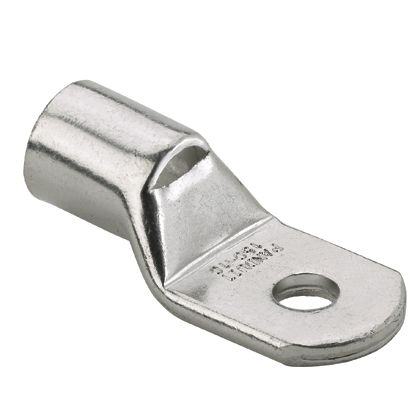

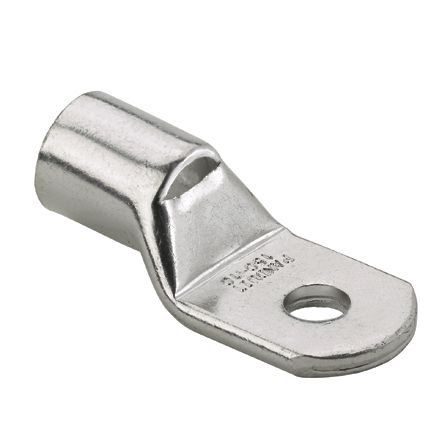

The LCMA50-10-L Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Panduit LCMA50-10-L One-hole, Metric Conductor, Standard Barrel With Window Lug, 50mm2 Wire, M10 Stud Hole
Specifications
Specifications
Panduit - LCMA50-10-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCMA50-10-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA50-10-L |
| Item Description | Pan-Lug LCMA50-10-L Comp. Lug, Tin Plt Copper, Strt, One 0.43" Stud, PK50 |
| Outer Diameter (In.) | 0.48 |
| Outer Diameter (mm) | 12.3 |
| Product Type | Copper Compression Connectors - Metric Lugs |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Metric Class 2r Copper Conductor Size (mm²) | 50 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 35 |
| Stud Hole Size (In.) | 0.43 |
| Stud Hole Size (mm) | 11 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.8 |
| Barrel Length (mm) | 20.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 18 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 1.8 |
| Overall Length (mm) | 46.5 |
| Finish/Coating | Tin-Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Panduit Die Index Number | P37 |
| Wire Strip Length (In.) | 0.85 |
| Wire Strip Length (mm) | 21.8 |
Panduit - LCMA50-10-L - Package Information
| UPC | 07498376945 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0305 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCMA50-10-L - Videos
| Video 1 | Click to View |
|---|
