Brand: Panduit
|
SKU:
LCMA50-6-L

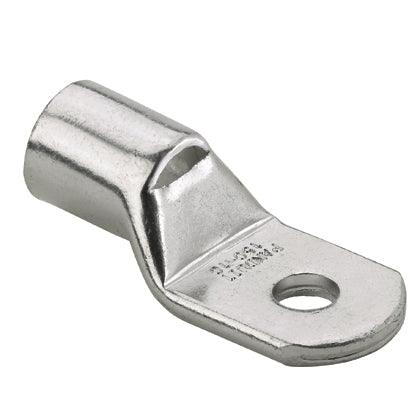

Panduit LCMA50-6-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376943
Regular price
$9.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA50-6-L | Tin-Plated CopperCompression Connectors - Metr...
Regular price
$9.07
Unit price
Description
Description
Panduit Pan-Lug Compression Connector Lug, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 50 sq-mm Conductor, Die Code: P37, 35 kVAC, M6 Stud, Straight Tongue, 18 mm W x 2.5 mm THK Tongue, 46.5 mm Overall Length, Seamless/Standard with Inspection Window Barrel, 9.8 mm ID x 20.3 mm L Barrel, 21.8 mm L Wire Strip, 11.5 mm Wrench Clearance, Tin Plated Finish, 90 deg C, 6.6 mm Dia Mounting Hole, Copper
Features + Benefits
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- Color coded barrel
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCMA50-6-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376943 Key Specs
| Product Type | Tin-Plated CopperCompression Connectors - Metric Lugs |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (mm) | 46.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 20.3 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| Sub Brand | Pan-Lug |
| Wire Strip Length (mm) | 21.8 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window. |
Panduit LCMA50-6-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376943 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCMA6-5-C Product Page! | Download and View |
| Press Releases | Press Release - Metric_PR_web_3-30a | Download and View |
| Product Bulletins | Metric Lugs: PCCB13 | Download and View |
Panduit LCMA50-6-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376943 Environmental Information
| Panduit's RoHS Statement | Download and View |
