Brand: Panduit
|
SKU:
LCMA50-8-L

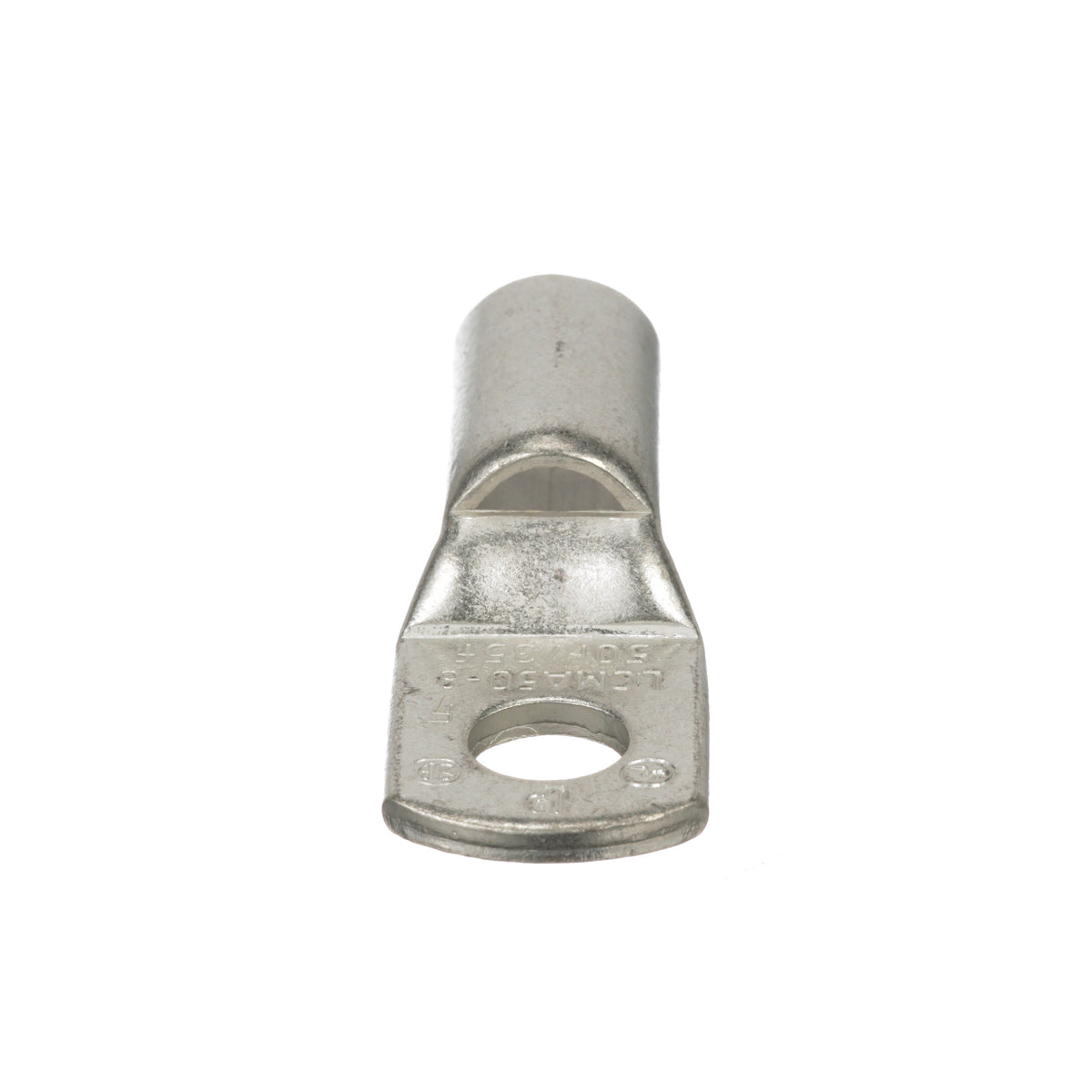

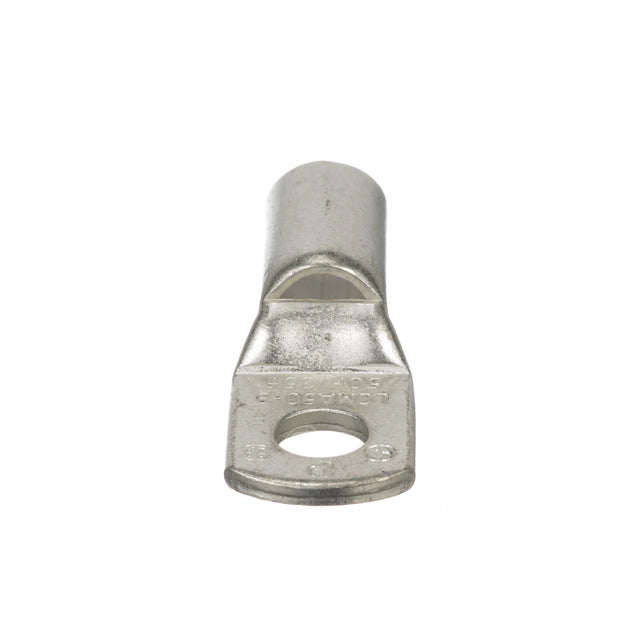

Panduit LCMA50-8-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376944
Regular price
$179.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA50-8-L | Tin-Plated CopperCompression Connectors - Metr...
Regular price
$179.28
Unit price
Description
Description
Panduit Compression Lug Connector, 1-Hole, Series: LCMA, Rigid/Stranded Copper Conductor, 50 sq-mm Conductor, Die Code: P37, 35 kV, M8 Stud, Round/Straight Tongue, 18 mm W x 2.5 mm THK Tongue, 46.5 mm Overall Length, Seamless/Standard Barrel, 9.8 mm ID x 20.3 mm L Barrel, Specifications: 11.5 mm Wrench Clearance, 21.8 mm L Wire Strip, Tin Plated, 90 deg C, 9 mm Mounting Hole, Copper
Features + Benefits
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- Color coded barrel
Panduit LCMA50-8-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376944 Key Specs
| Inside Diameter (In.) | 0.38 |
| Inside Diameter (mm) | 9.8 |
| Outer Diameter (In.) | 0.48 |
| Outer Diameter (mm) | 12.3 |
| Product Type | Tin-Plated CopperCompression Connectors - Metric Lugs |
| Lug Type | Standard |
| Base Material | Copper |
| Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²) | 50 |
| Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²) | 35 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.35 |
| Stud Hole Size (mm) | 9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 20.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 18 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.09 |
Panduit LCMA50-8-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376944 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCMA6-5-C Product Page! | Download and View |
| Press Releases | Press Release - Metric_PR_web_3-30a | Download and View |
| Product Bulletins | Metric Lugs: PCCB13 | Download and View |
Panduit LCMA50-8-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376944 Environmental Information
| Panduit's RoHS Statement | Download and View |
