Panduit LCMA630-16-1 | Pan-Lug Copper Compression Connectors - Metr...
Description
Description

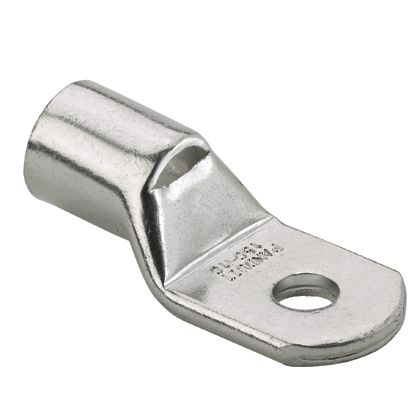

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, metric conductor, standard barrel with window lug, 630mm2 wire, M16 stud hole.
Panduit Pan-Lug Lug Compression Connector, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 630 sq-mm Conductor, Die Code: P125, 35 kV, M16 Stud, Straight Tongue, 63 mm W Tongue, 131 mm Overall Length, Standard With Inspection Window Barrel, 90 deg C, 18 mm Mounting Hole, Tin Plated Copper
Panduit - LCMA630-16-1 - Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- Color coded barrel
Specifications
Specifications
Panduit - LCMA630-16-1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA630-16-1 |
| UNSPSC Code | 39121400 |
| Product Type | Metric Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 16 |
| Metric Class 2r Copper Conductor Size (mm²) | 630 |
| Barrel Length (mm) | 56.2 |
| Tongue Width (mm) | 63 |
| Tongue Thickness (mm) | 9.4 |
| Overall Length (mm) | 131 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant,UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | White |
| Panduit Die Index Number | P125 |
| UPC | 07498376981 |
Panduit - LCMA630-16-1 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
