Brand: Panduit
|
SKU:
JVX-16968

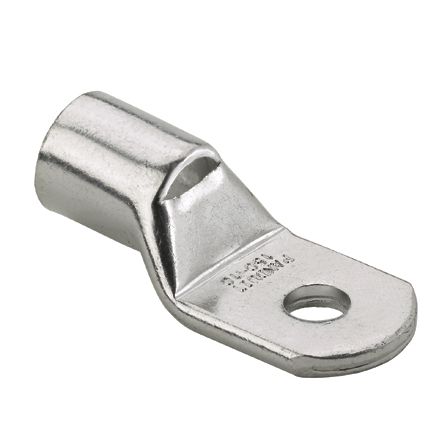

Panduit LCMA70-10-L | Pan-Lug Copper 1 Hole Straight Tongue Compression Lug, PK50
Regular price
$7.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA70-10-L | Pan-Lug Copper 1 Hole Straight Tongue Compres...
Regular price
$7.76
Unit price
Description
Description
Panduit LCMA70-10-L | Pan-Lug Copper 1 Hole Straight Tongue Compression Lug, PK50
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Specifications
Specifications
Panduit - LCMA70-10-L - Specifications
| Product Type | Metric Compression Lug |
|---|---|
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 10 |
| Metric Class 2r Copper Conductor Size (mm²) | 70 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 50 |
| Barrel Length (mm) | 23.3 |
| Tongue Width (mm) | 20.8 |
| Tongue Thickness (mm) | 2.9 |
| Overall Length (mm) | 53.5 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
Panduit - LCMA70-10-L - Package Includes
| UPC | 07498376949 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0381 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
