Brand: Panduit
|
SKU:
873163
Panduit LCMA70-10-L | Pan-Lug LCMA70-10-L Comp. Lug, Metric, Tin Plt Copper, PK50
Regular price
$265.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMA70-10-L | Pan-Lug LCMA70-10-L Comp. Lug, Metric, Tin Pl...
Regular price
$265.74
Unit price
Description
Description
Panduit LCMA70-10-L | Pan-Lug LCMA70-10-L Comp. Lug, Metric, Tin Plt Copper, PK50

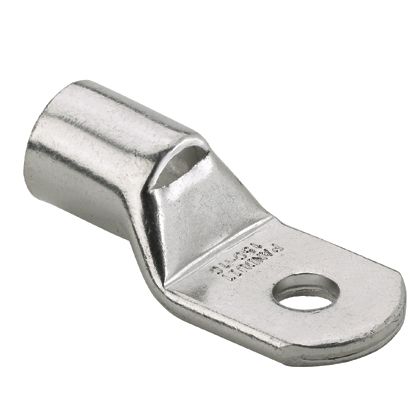

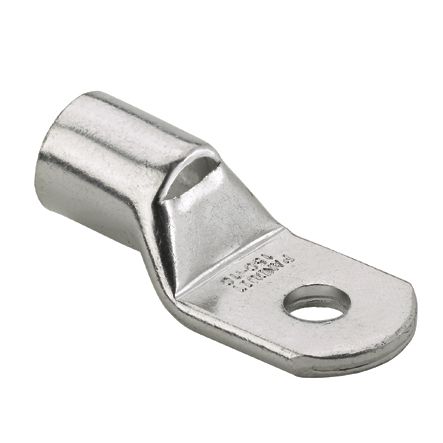

One-hole, metric conductor, standard barrel with window lug, 70mm² wire, M10 stud hole.
Panduit LCMA70-10-L Terminal Lug, One-holem10 Stud Hole, 70mm Sq Wire1 Pk - 50 Pcs
Specifications
Specifications
Panduit - LCMA70-10-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCMA70-10-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMA70-10-L |
| Item Description | Pan-Lug LCMA70-10-L Comp. Lug, Metric, Tin Plt Copper, PK50 |
| Product Type | Copper Compression Connectors - Metric Lugs |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | #10 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 23.3 |
| Tongue Type | Standard |
| Tongue Width (mm) | 20.8 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 2.9 |
| Overall Length (mm) | 53.5 |
| Finish/Coating | Tin-Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 24.8 |
Panduit - LCMA70-10-L - Package Information
| UPC | 07498376949 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0381 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
