Panduit LCMA95-12-L | Tin-Plated CopperCompression Connectors - Met...
Description
Description

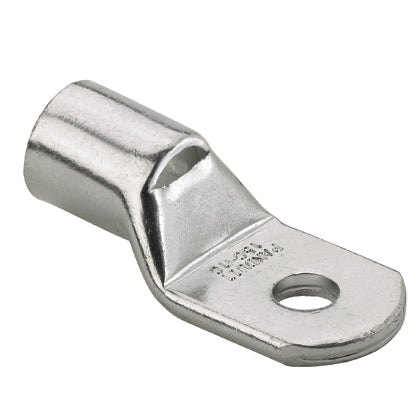

Panduit Pan-Lug Compression Connector Lug, 1-Hole Metric, Series: LCMA, Stranded Copper Conductor, 95 sq-mm Conductor, Die Code: P54, 35 kVAC, M12 Stud, Round/Straight Tongue, 24.5 mm W x 3 mm THK Tongue, 60.5 mm Overall Length, Seamless/Standard with Inspection Window Barrel, 13.5 mm ID x 16.5 mm OD x 24.5 mm L Barrel, 26 mm L Wire Strip, 15 mm Wrench Clearance, Tin Plated Finish, 90 deg C, 14 mm Dia Mounting Hole, Copper
Features + Benefits
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- For use with flexible copper conductors
- 95 sq-mm class 2, 70 sq-mm class 5F and class 6F
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCMA95-12-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376953 Key Specs
| Product Type | Tin-Plated CopperCompression Connectors - Metric Lugs |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 3 |
| Overall Length (mm) | 60.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 24.5 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| Sub Brand | Pan-Lug |
| Wire Strip Length (mm) | 26 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window. |
Panduit LCMA95-12-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376953 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCMA6-5-C Product Page! | Download and View |
| Press Releases | Press Release - Metric_PR_web_3-30a | Download and View |
| Product Bulletins | Metric Lugs: PCCB13 | Download and View |
Panduit LCMA95-12-L | Tin-Plated CopperCompression Connectors - Metric Lugs | UPC - 07498376953 Environmental Information
| Panduit's RoHS Statement | Download and View |
