Brand: Panduit
|
SKU:
10170286

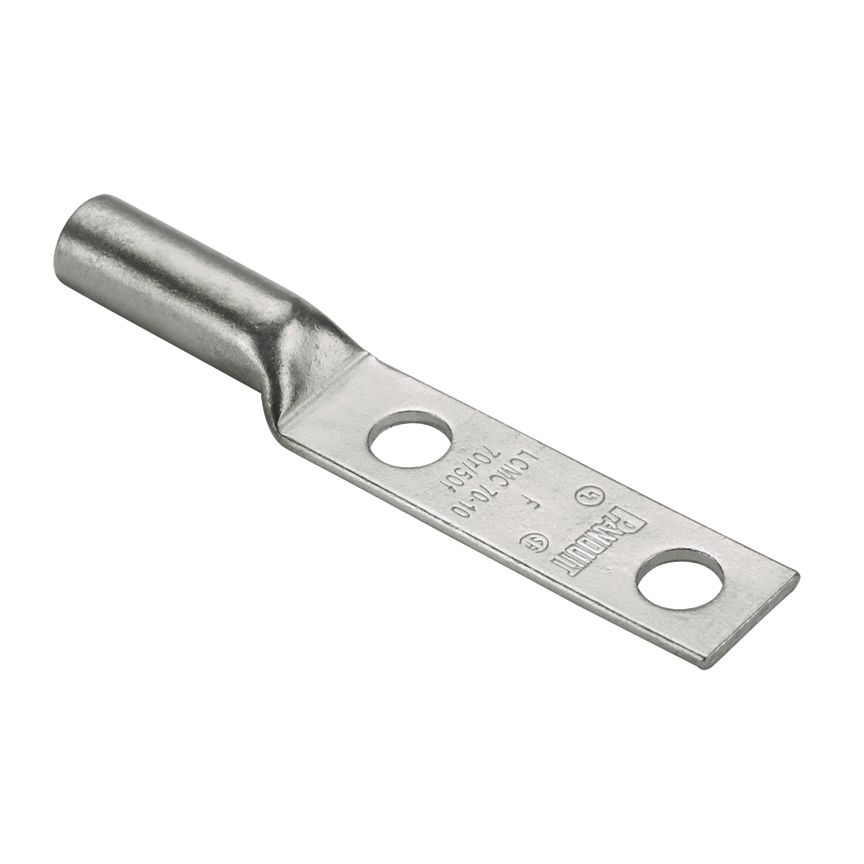

Panduit LCMC16-8-L | Pan-Lug LCMC16-8-L Copper Compression Connectors - Metric Lugs
Regular price
$5.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCMC16-8-L | Pan-Lug LCMC16-8-L Copper Compression Connecto...
Regular price
$5.09
Unit price
Description
Description
Panduit LCMC16-8-L | Pan-Lug LCMC16-8-L Copper Compression Connectors - Metric Lugs
Two-hole, metric conductor, long barrel, 16mm² 2r, 10mm² class 5f/6f, M8 stud hole.
Panduit LCMC16-8-L Twohole Metric Conductorlong Barrel 16mm2 2r 10mm25f6f M8 Stud Hole
Specifications
Specifications
Panduit - LCMC16-8-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCMC16-8-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCMC16-8-L |
| Item Description | Pan-Lug LCMC16-8-L Copper Compression Connectors - Metric Lugs |
| Note | 10mm2 class 5f flex only |
| Product Type | Copper Compression Connectors - Metric Lugs |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Metric Class 2r Copper Conductor Size (mm²) | 16 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 10 |
| Stud Hole Size (mm) | 8 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel without Inspection Window |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (mm) | 13.5 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 1.5 |
| Overall Length (mm) | 91.7 |
| Finish/Coating | Tin Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35000 |
| Panduit Die Index Number | P21 |
| Wire Strip Length (mm) | 28.8 |
Panduit - LCMC16-8-L - Package Information
| UPC | 07498361760 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
