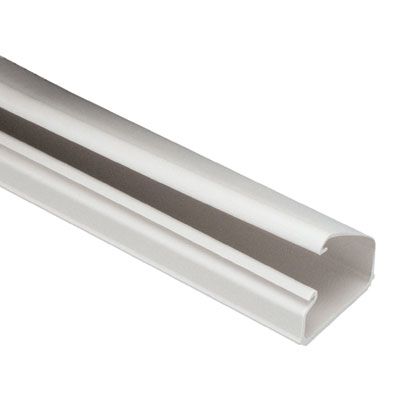

Panduit LD10IW2-A | Surface Raceway, LD10 Low Volt. Single Chnl., 2...
Description
Description
The LD10 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 2 meters in length and is 1.5 inches wide by 0.94 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is International Gray.
Panduit LD10IW2-A Ld10 Low Voltage 1-piece Single Channel Raceway With Adhesive 2m., Off White
Specifications
Specifications
Panduit - LD10IW2-A - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - LD10IW2-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LD10IW2-A |
| Item Description | Surface Raceway, LD10 Low Volt. Single Chnl., 2 Meter, Off-White |
| Product Type | Low Voltage Channel |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Channel |
| For Use With | LD Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Internal Area (in²) | 1 |
| Overall Height (In.) | 0.94 |
| Overall Height (mm) | 23.9 |
| Overall Length (In.) | 78.74 |
| Overall Length (mm) | 2000 |
| Overall Width (In.) | 1.51 |
| Overall Width (mm) | 38.4 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Panduit - LD10IW2-A - Package Information
| UPC | 07498357846 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.0774 |
| Standard Ctn. Quantity | 40 |
| Standard Ctn. Volume (cf) | 1.5478 |
