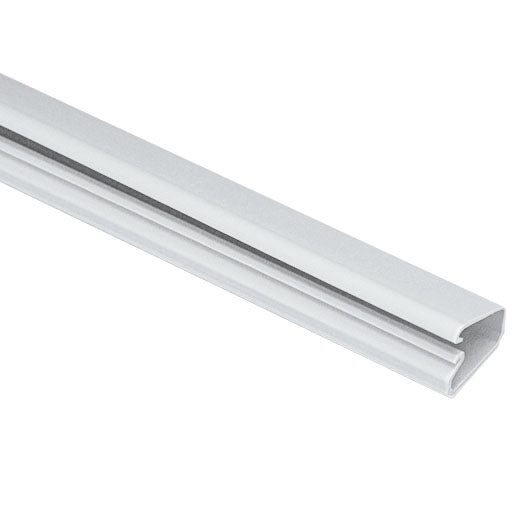

Panduit LD3IG10-A | Low Voltage Channel | UPC - 07498372991
Description
Description
LD non-metallic Series low voltage, 1-piece hinged design, single channel surface raceway shall include adhesive backing and shall be made of impact-resistant material with a smooth finish that shall not scratch, peel or corrode. The raceway shall include an assortment of bend radius and standard fittings that complement the offering to help route, protect and conceal low voltage data, voice and video cabling. LD raceway shall be available in three sizes and four standard colors that shall be optimized with the Panduit Pan-Net communication system.
Panduit Pan-Way Non-Metallic Raceway, Low Voltage Channel, Series: LD Series, 10 ft Length, 0.77 in Width, 0.46 in Height, 50 VAC, 1 Channels, Audio/Video/Data Grade/Electrical/Fiber Optic Cable, Adhesive Back, 1-Channel Hinged Cover, 0 to 50 deg C, Surface Mounting, PVC, International Gray
Features + Benefits
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance
- 1-piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
- Full length adhesive strip allows easy tool-free installation and works well for temporary mounting adhesive backing
- Supplied with pre-applied adhesive backed tape
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings and perfect solution
- 1-piece latching surface raceway
Panduit LD3IG10-A Key Specs
| Product Type | Low Voltage Channel |
| Sub Brand | Pan-Way |
| Color | International Gray |
| Fitting Type | Channel |
| For Use With | LD Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Internal Area (in²) | 0.21 |
| Overall Height (In.) | 0.46 |
| Overall Height (mm) | 11.7 |
| Overall Length (In.) | 120 |
| Overall Length (mm) | 3048 |
| Overall Width (In.) | 0.77 |
| Overall Width (mm) | 19.6 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
