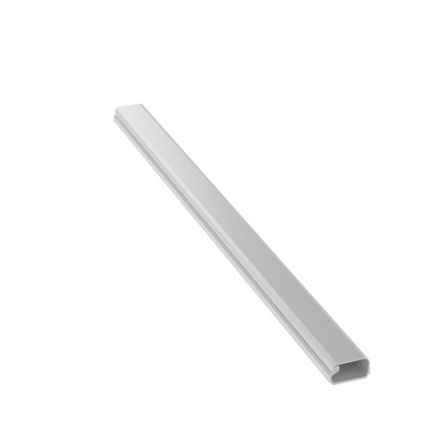

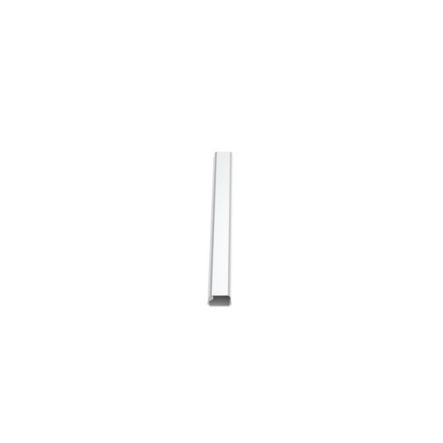

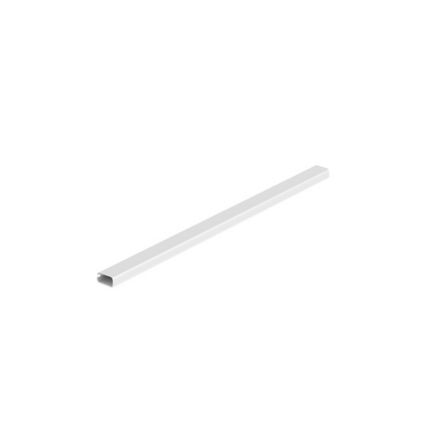

Panduit LD3WH8-A | LD3 Low Voltage 1-piece Single Channel Raceway With Adhesive 8FT., White
Regular price
$26.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LD3WH8-A | LD3 Low Voltage 1-piece Single Channel Raceway W...
Regular price
$26.36
Unit price
Description
Description
Panduit LD3WH8-A | Surface Raceway, LD3 Low Voltage Single Channel, 8 ft, White
The LD3 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 0.77 inches wide by 0.46 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is White.
Panduit - LD3WH8-A - Features
- For routing data and low voltage cabling
- One-piece hinged design allows cables to be laid in
- Factory applied adhesive backing speeds installation
- FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
- Terminates using surface mount olet box solutions or Panduit(TM) Mini-Com(TM) Surface Mount Boxes
Specifications
Specifications
Panduit - LD3WH8-A - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - LD3WH8-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LD3WH8-A |
| Item Description | Surface Raceway, LD3 Low Voltage Single Channel, 8 ft, White |
| Product Type | Low Voltage Channel |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Channel |
| For Use With | LD Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Internal Area (in²) | 0.21 |
| Overall Height (In.) | 0.46 |
| Overall Height (mm) | 11.7 |
| Overall Length (In.) | 96 |
| Overall Length (mm) | 2.438 |
| Overall Width (In.) | 0.77 |
| Overall Width (mm) | 19.6 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
| Part Features | One-piece latching surface raceway. 0.77 x 0.46 (20.0mm x 12.0mm). One-piece hinged design allows cables to be laid in. Factory applied adhesive backing speeds installation. Terminates using surface mount outlet box solutions or Panduit Mini-Com Surface |
Panduit - LD3WH8-A - Package Information
| UPC | 07498372983 |
|---|---|
| Standard Pkg. Qty. | 8 |
| Standard Package Volume (cf) | 0.0283 |
| Standard Ctn. Qty. | 160 |
| Standard Ctn. Volume (cf) | 0.5669 |
