Brand: Panduit
|
SKU:
131156

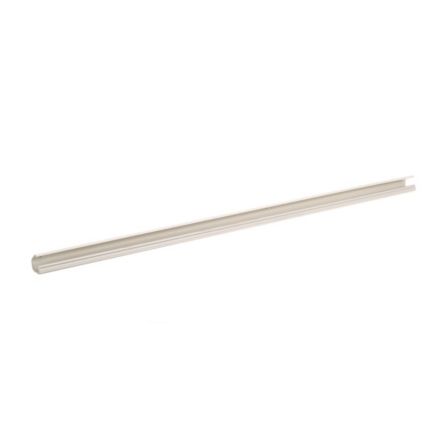

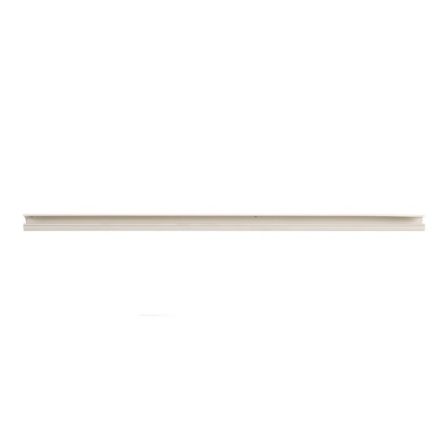

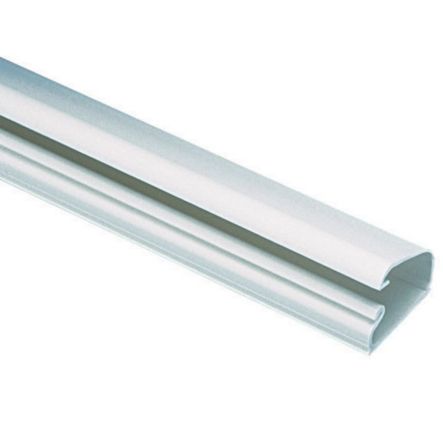

Panduit LD5IW6-A | LD5 Low Voltage 1-piece Single Channel Raceway With Adhesive 6FT., Off White
Regular price
$22.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LD5IW6-A | LD5 Low Voltage 1-piece Single Channel Raceway W...
Regular price
$22.42
Unit price
Description
Description
Panduit LD5IW6-A | Surface Raceway, LD5 Low Voltage Single Channel, 6 ft, Off-White
The LD5 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 6 ft in length and is 1.01 inches wide by 0.58 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is Off-White.
Panduit - LD5IW6-A - Features
- One-piece latching surface raceway. Supplied with pre-applied adhesive backed tape. Available in 6’;, 8’;, and 10’; lengths, Off White, PVC, Length 6.00 ft, Width 1.01 in.
- For routing data and low voltage cabling
- One-piece hinged design allows cables to be laid in
- Factory applied adhesive backing speeds installation
- FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
- Terminates using surface mount olet box solutions or Panduit(TM) Mini-Com(TM) Surface Mount Boxes
Specifications
Specifications
Panduit - LD5IW6-A - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - LD5IW6-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LD5IW6-A |
| Item Description | Surface Raceway, LD5 Low Voltage Single Channel, 6 ft, Off-White |
| Product Type | Low Voltage Channel |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Channel |
| For Use With | LD Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Internal Area (in²) | 0.38 |
| Overall Height (In.) | 0.58 |
| Overall Height (mm) | 14.8 |
| Overall Length (In.) | 72 |
| Overall Length (mm) | 1.829 |
| Overall Width (In.) | 1.01 |
| Overall Width (mm) | 25.8 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
| Part Features | One-piece latching surface raceway. 1.01 x 0.60 (26.0mm x 15.0mm). One-piece hinged design allows cables to be laid in. Factory applied adhesive backing speeds installation. Terminates using surface mount outlet box solutions or Panduit Mini-Com Surface Mount Boxes. |
Panduit - LD5IW6-A - Package Information
| UPC | 07498358827 |
|---|---|
| Standard Pkg. Qty. | 6 |
| Standard Package Volume (cf) | 0.0330 |
| Standard Ctn. Qty. | 120 |
| Standard Ctn. Volume (cf) | 0.6606 |
Panduit - LD5IW6-A - Videos
| Video 1 | Click to View |
|---|
