Brand: Panduit | SKU: 10482895

Panduit LDPH10IG10-A | Surface Raceway, LDPH10 Power Rated, 2-pc Latch, 10 ft, Int. Gray

$50.91

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Panduit LDPH10IG10-A | Surface Raceway, LDPH10 Power Rated, 2-pc Latch, 10 ft, Int. Gray

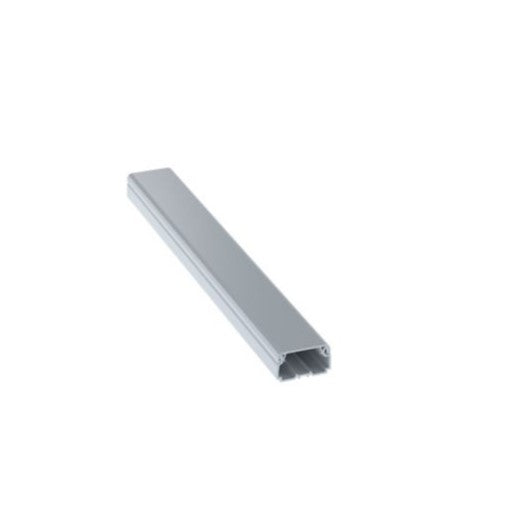

The LDPH10 power rated Surface Raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 10 feet in length and is 1.52 inches wide by 0.86 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is International Gray.

Specifications

Panduit - LDPH10IG10-A - Specifications

Product Type	Power Rated Channel
Sub Brand	Pan-Way®
Color	International Gray
Fitting Type	Channel
For Use With	LDPH Raceway
Material	PVC
Material Properties	Rigid
Mount Method	Adhesive
Raceway Type	Power Rated
Standards Met	Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Internal Area (in²)	0.89
Overall Length (In.)	120
Overall Length (mm)	3048
Overall Width (In.)	1.52
Overall Width (mm)	39
Overall Height (In.)	0.86

Panduit - LDPH10IG10-A - Package Information

UPC	07498334417
Std. Pkg. Qty.	10
Std. Pkg. Volume (cf)	0.1371
Std. Ctn. Qty.	200
Std. Ctn. Volume (cf)	2.7421

Panduit - LDPH10IG10-A - Video

Panduit LDPH10IG10-A Videos	Click to View

Documents and Downloads
