Brand: Panduit
|
SKU:
10153351

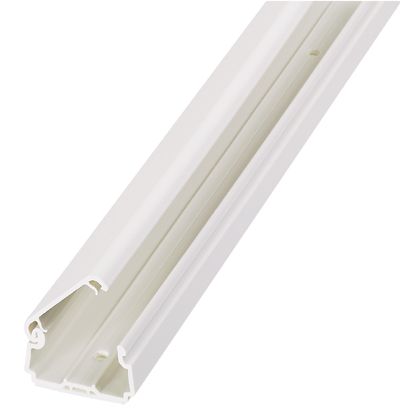

Panduit LDPH10IG6-A | Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 6 ft, Int. Gray
Regular price
$31.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LDPH10IG6-A | Surface Raceway, LDPH10 Pwr Rated,2-pc Latch,...
Regular price
$31.34
Unit price
Description
Description
Panduit LDPH10IG6-A | Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 6 ft, Int. Gray
The LDPH10 power rated Surface Raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 6 feet in length and is 1.52 inches wide by 0.86 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is International Gray.

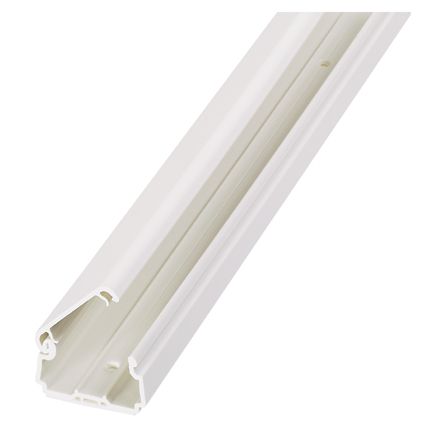

Panduit LDPH10IG6-A Panduit Ldph10ig6a Raceway And
Specifications
Specifications
Panduit - LDPH10IG6-A - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - LDPH10IG6-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LDPH10IG6-A |
| Item Description | Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 6 ft, Int. Gray |
| Product Type | Power Rated Channel |
| Sub Brand | Pan-Way |
| Color | International Gray |
| Fitting Type | Channel |
| For Use With | LDPH Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive, Screw-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Internal Area (in²) | 0.89 |
| Overall Height (In.) | 0.86 |
| Overall Height (mm) | 22 |
| Overall Length (In.) | 72 |
| Overall Length (mm) | 1828.8 |
| Overall Width (In.) | 1.52 |
| Overall Width (mm) | 39 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
Panduit - LDPH10IG6-A - Package Information
| UPC | 07498334431 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0695 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 1.3896 |
