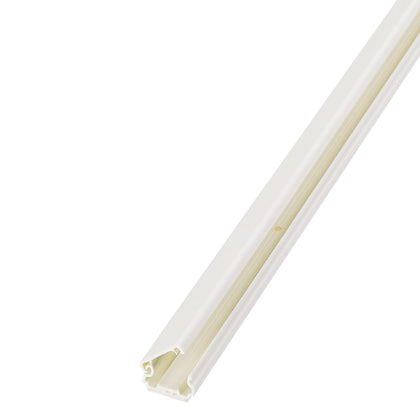

Panduit LDPH3IW10-A | Power Rated Channel | UPC - 07498334385
Description
Description
LDPH non-metallic series is a power rated, single channel, pre-assembled 2-piece hinged cover design surface raceway. It shall be suitable for use in applications up to 600 VAC, shall include adhesive backing and shall be made of impact-resistant material with a smooth finish that shall not scratch, peel or corrode. The raceway shall include an assortment of bend radius and standard fittings that complement the offering to help route, protect and conceal power or low voltage cabling. LDPH raceway shall be available in three sizes and four standard colors that shall be optimized for use with the Panduit Pan-Net communication system.
Panduit Pan-Way Non-Metallic Raceway, 2-Piece Latching Power Rated Channel Tamper-Resistant, Series: LDPH, 10 ft Length, 0.77 in Width, 0.41 in Height, 600 VAC, 1 Channels, Coaxial/Data Grade/Electrical/Fiber Optic Cable, Adhesive Back, Hinged Cover, 0 to 50 deg C, Surface Mounting, PVC, Off-White, Smooth
Features + Benefits
- Pre-assembled 2-piece hinged cover design cover remains open without use of tools or fixtures, speeds placement of cables into the raceway
- Non-slip liner cover, keeps cover from sliding when in an open position, particularly useful when product is used in vertical applications
- 1 in bend radius fittings
- Highly tamper-resistant difficult for untrained personnel to access the raceway, provides maximum security for communication cabling and maximum safety for power cabling
- Mounting holes in base eliminates need for drilling holes in raceway and speeds installation
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings
- Tamper-resistant 2-piece latching surface raceway
- Supplied with pre-punched mounting holes and factory applied adhesive tape
- Full length adhesive strip allows easy tool free installation and works well for temporary mounting adhesive backing
Panduit LDPH3IW10-A Key Specs
| Product Type | Power Rated Channel |
| Sub Brand | Pan-Way |
| Color | Off-White |
| Fitting Type | Channel |
| For Use With | LDPH Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive, Screw-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Internal Area (in²) | 0.17 |
| Overall Height (In.) | 0.41 |
| Overall Height (mm) | 10.4 |
| Overall Length (In.) | 120 |
| Overall Length (mm) | 3048 |
| Overall Width (In.) | 0.77 |
| Overall Width (mm) | 19.6 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
| Part Features | Tamper resistant two-piece latching surface raceway. 0.75 x 0.41 (20.0mm x 10.4mm). Two-piece hinged design allows cables to be laid in. Factory applied adhesive backing speeds installation. Terminates using surface mount outlet box solutions or Panduit Mini-Com Surface Mount Boxes. |
Panduit LDPH3IW10-A Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Part Drawings | Part Drawing - PDF - LCC6-10AW-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
