Brand: Panduit
|
SKU:
311836

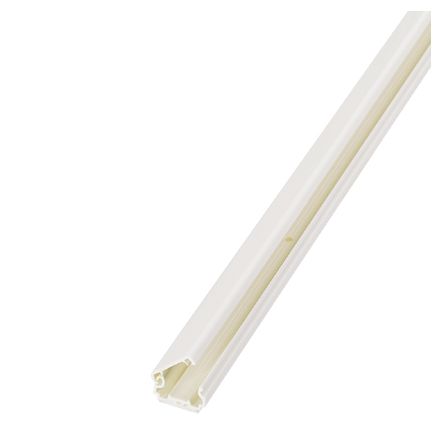

Panduit LDPH3WH8-A | LDPH3 Hinged, 2-piece Power Rated Raceway With Adhesive 8FT., White
Regular price
$28.72
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LDPH3WH8-A | LDPH3 Hinged, 2-piece Power Rated Raceway With...
Regular price
$28.72
Unit price
Brand: Panduit
|
SKU:
311836
Regular price
$28.72
Unit price
Description
Description
Panduit LDPH3WH8-A | Surface Raceway, LDPH3 Power Rated, 2-piece Latching, 8 ft, White
The LDPH3 power rated Surface Raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 0.75 inches wide by 0.41 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is White.
Panduit - LDPH3WH8-A - Features
- UL and CSA rated 600 V; meets UL 5A and CSA C22.2 No. 62.1-03 standards; FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
- Two-piece hinged design allows cables to be laid in
- Tamper resistant
- Factory applied adhesive backing speds installation
- Terminates using surface mount outlet box solutions or PANDUIT(TM) Mini-Com(TM) Surface Mount Boxes
Specifications
Specifications
Panduit - LDPH3WH8-A - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - LDPH3WH8-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LDPH3WH8-A |
| Item Description | Surface Raceway, LDPH3 Power Rated, 2-piece Latching, 8 ft, White |
| Product Type | Power Rated Channel |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Channel |
| For Use With | LDPH Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive, Screw-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Internal Area (in²) | 0.17 |
| Overall Height (In.) | 0.41 |
| Overall Height (mm) | 10.4 |
| Overall Length (In.) | 96 |
| Overall Length (mm) | 2438.4 |
| Overall Width (In.) | 0.77 |
| Overall Width (mm) | 19.6 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
| Part Features | Tamper resistant two-piece latching surface raceway. 0.75 x 0.41 (20.0mm x 10.4mm). Two-piece hinged design allows cables to be laid in. Factory applied adhesive backing speeds installation. Terminates using surface mount outlet box solutions or Panduit Mini-Com Surface Mount Boxes. |
Panduit - LDPH3WH8-A - Package Information
| UPC | 07498334389 |
|---|---|
| Standard Pkg. Qty. | 8 |
| Standard Package Volume (cf) | 0.0308 |
| Standard Ctn. Qty. | 160 |
| Standard Ctn. Volume (cf) | 0.6164 |
