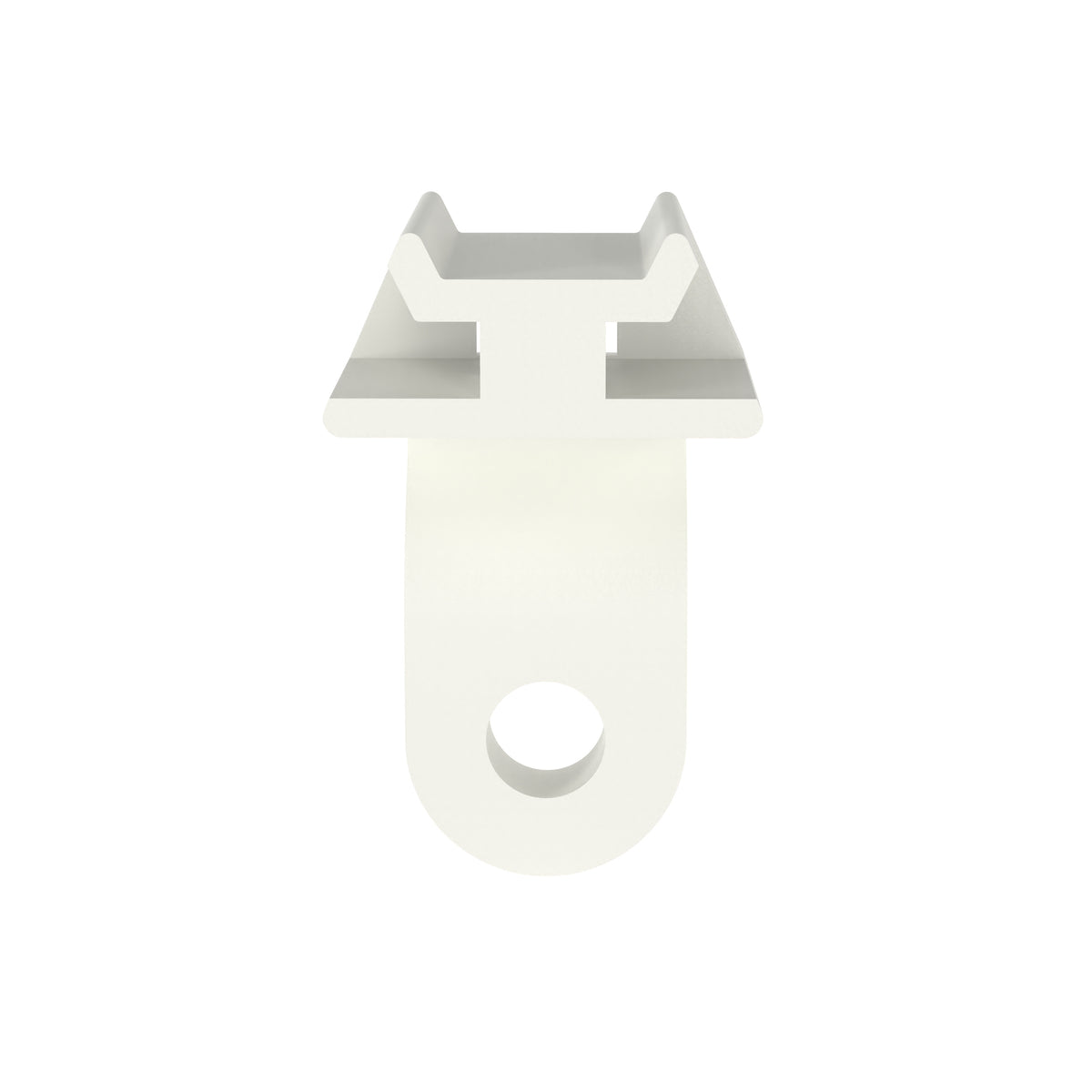

Panduit LHMS-S10-D | Lightening Hole Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Lightening Hole, Threaded Mounting, 3/4 in Base Length, 0.7 in Base Width, Nylon 6.6, Natural
Our cable tie mounts are designed to provide a safe and reliable way to route and secure cable bundles through bulkhead lightening holes, ideal for electrical enclosures and industrial equipment.
Panduit LHMS-S10-D Lightening Hole Cable Tie Mounts secure cable bundles that run through bulkhead lightening holes and protect them from sharp edges. For use in indoor environments and with #10 (M5) screws or 3/16 (4.7) rivets. Made of Nylon 6.6, are natural in color and come in packages of 500.
Panduit - LHMS-S10-D - Features
- Applications: Lightening Hole Cable Tie Mount
- Secure cable bundle that run through bulkhead lightening holes
- Protects cable bundle from sharp edges
- #10 (M5) screw
Specifications
Specifications
Panduit - LHMS-S10-D - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | RoHS Compliant |
| Product Type | Cable Tie Mount |
| Application | Lightening Hole Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #10 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.7 |
| Overall Width (mm) | 17.7 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 27.9 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358422 |
Panduit - LHMS-S10-D - Package Information
| UPC | 07498358422 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.2570 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 1.2851 |
Panduit - LHMS-S10-D - Videos
| Panduit LHMS-S10-D Videos | Click to View |
|---|
