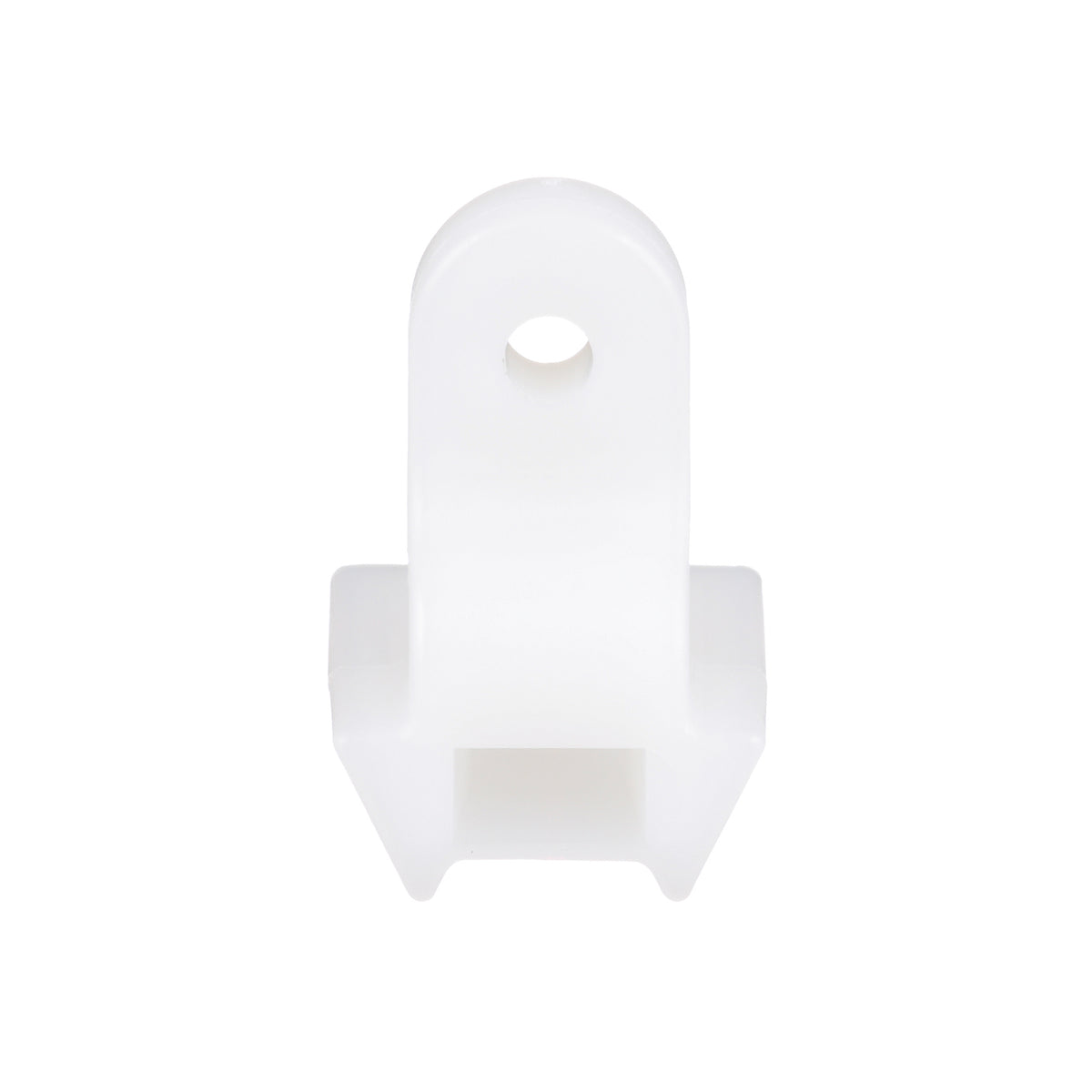

Panduit LHMS-S6-D | Lightening Hole Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Lightening Hole, Threaded Mounting, 3/4 in Base Length, 0.7 in Base Width, Nylon 6.6, Natural
Our cable tie mounts are designed to provide a safe and reliable way to route and secure cable bundles through bulkhead lightening holes, ideal for electrical enclosures and industrial equipment.
Panduit LHMS-S6-D Lightening Hole Cable Tie Mounts secure cable bundles that run through bulkhead lightening holes and protect them from sharp edges. These mounts are military grade and for use in indoor environments. Apply mounts with #6 (M3) screws o r 9/64 (3.5) rivets. Made of Nylon 6.6, are natural in color and come in packages of 500.
Panduit - LHMS-S6-D - Features
- Applications: Lightening Hole Cable Tie Mount
- Secure cable bundle that run through bulkhead lightening holes
- Protects cable bundle from sharp edges
- #6 (M3.5) screw
Specifications
Specifications
Panduit - LHMS-S6-D - Specifications
| UNSPSC Code | 55120000 |
|---|---|
| Technical Information | RoHS Compliant |
| Product Type | Cable Tie Mount |
| Application | Lightening Hole Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.7 |
| Overall Width (mm) | 17.7 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 27.9 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358421 |
Panduit - LHMS-S6-D - Package Information
| UPC | 07498358421 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.2640 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 1.3201 |
