Brand: Panduit
|
SKU:
1011116

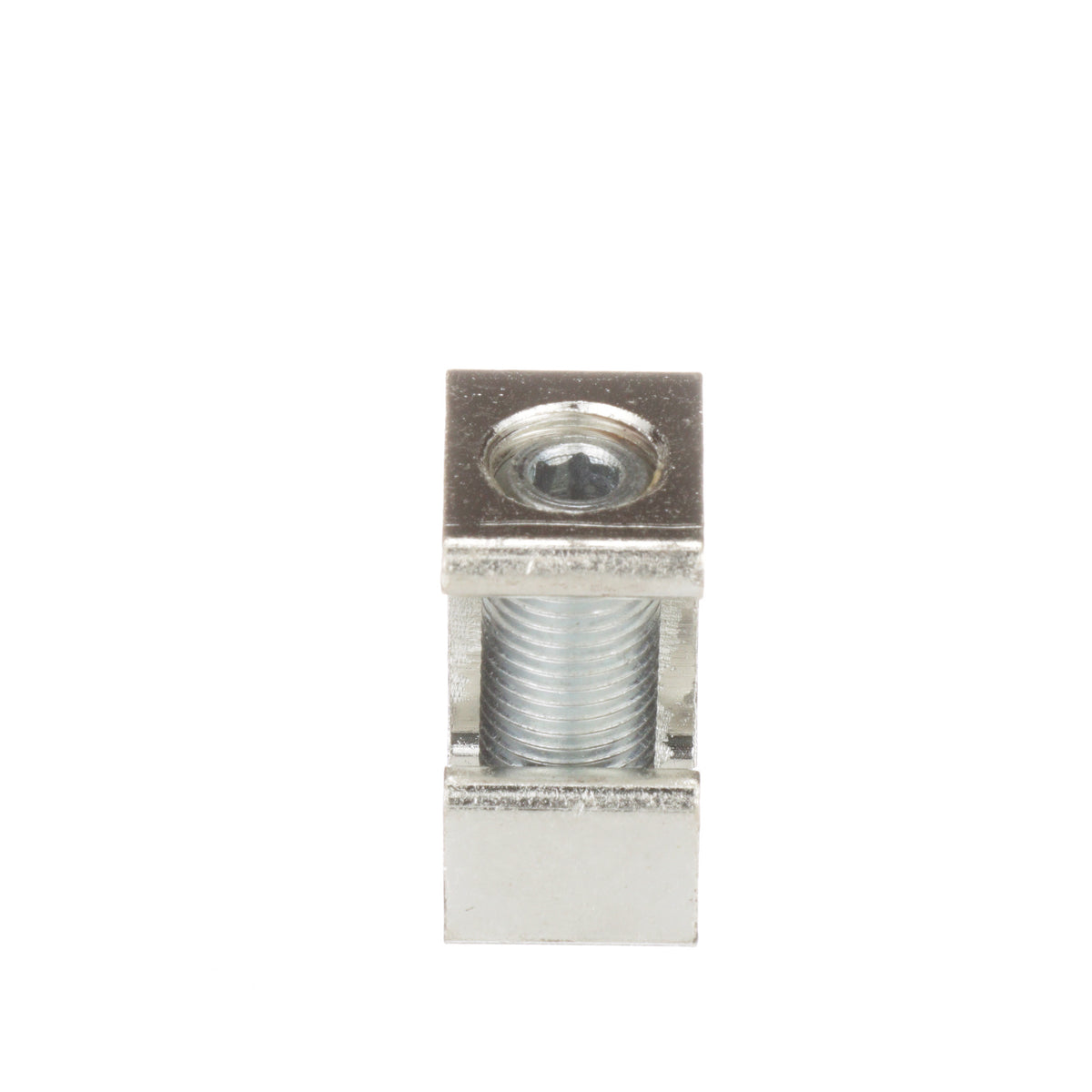

Panduit LIAS250-56-Q | Grounding Clamp | UPC - 07498339066
Regular price
$237.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LIAS250-56-Q | Grounding Clamp | UPC - 07498339066
Regular price
$237.77
Unit price
Description
Description
Panduit StructuredGround Mechanical Lug, Lay-In, Series: LI Series, Solid Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 0.33 in Stud, 1 Bolt Holes, Straight Tongue, 600 VAC, Specifications: 1/4 in Hex, 90 deg C, Aluminum, Tin Plated, 2.2 in L x 0.8 in W x 1.7 in H Dimensions
Features + Benefits
- Used for quick installation of a continuous grounding conductor
- Wire range taking capability minimizes inventory requirements and saves cost
Panduit LIAS250-56-Q Key Specs
| Sub Brand | StructuredGround |
| Product Type | Grounding Clamp |
| Material | Aluminum |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 2.2 |
| Overall Length (mm) | 55.9 |
| Overall Width (In.) | 0.8 |
| Overall Width (mm) | 20.3 |
| Maximum Compatible Conductor Size (kcmil) | 250 |
| Minimum Compatible Conductor Size (AWG STR) | 6 |
| Stud Hole Size (In.) | 0.33 |
| Stud Hole Size (mm) | 8.4 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 43.2 |
| Standards Met | cULus Listed 467 for Grounding applications |
| Application | Utility/Ground Grid |
Panduit LIAS250-56-Q Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LICC4-22-C Product Page | Download and View |
| Product Bulletins | StructuredGround Mechanical Connectors: GRCB02--SA-ENG | Download and View |
| Part Drawings | Copper & Aluminum Lay-In Lug Connectors Part Drawings 10J018AY-JC | Download and View |
| Videos | The Importance of Grounding and Bonding the Physical Infrastructure Video | Download and View |
