Panduit LICC4-22TP-TL | StructuredGround LICC4-22TP-TL Lay-In Lug,14-4 CU AWG,Tin-Plate

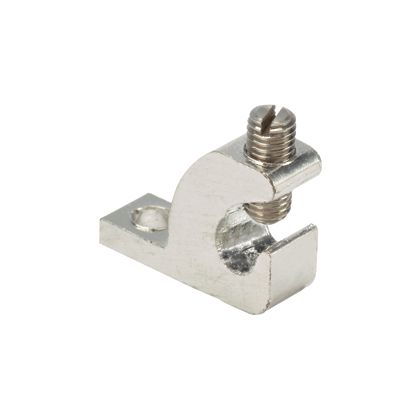

The LICC4-22TP-TL Tin-plated copper Lay-In-Lug, one-hole, is used for quick installation of a continuous grounding conductor. The wide wire range-taking capability minimizes inventory requirements. Copper body lugs are UL Listed for direct burial in earth or concrete.
Specifications
Specifications
Panduit - LICC4-22TP-TL - Product Categories
- Grounding & Bonding
- One-Hole Lugs
Panduit - LICC4-22TP-TL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LICC4-22TP-TL |
| Item Description | StructuredGround LICC4-22TP-TL Lay-In Lug,14-4 CU AWG,Tin-Plate |
| Sub Brand | StructuredGround |
| Material | Copper |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Maximum Compatible Conductor Size (AWG STR) | 4 |
| Minimum Compatible Conductor Size (AWG STR) | 14 |
| Overall Width (In.) | 0.39 |
| Overall Width (mm) | 9.9 |
| Overall Height (In.) | 0.87 |
| Overall Height (mm) | 22.1 |
| Stud Hole Size (In.) | 0.22 |
| Stud Hole Size (mm) | 5.59 |
| Application | Utility/Ground Grid |
| Standards Met | cULus Listed 467 for Grounding applications, DB Rated |
| Product Type | Lay-In Lug |
Brand Name - LICC4-22TP-TL - Package Information
| UPC | 61305687853 |
|---|---|
| Standard Package Quantity | 250 |
| Standard Package Volume (cf) | 0.0190 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0761 |
Brand Name - LICC4-22TP-TL - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
