Panduit LPMS-S8-M | Cable Tie Mount, Natural, PA 6.6, Screw, 0.73x0.5", PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LPMS-S8-M | Cable Tie Mount, Natural, PA 6.6, Screw, 0.73x0...
Description
Description
Our low profile cable tie mount provides a secure, discreet way to manage cables. It boosts durability and works with miniature, intermediate, and standard ties.

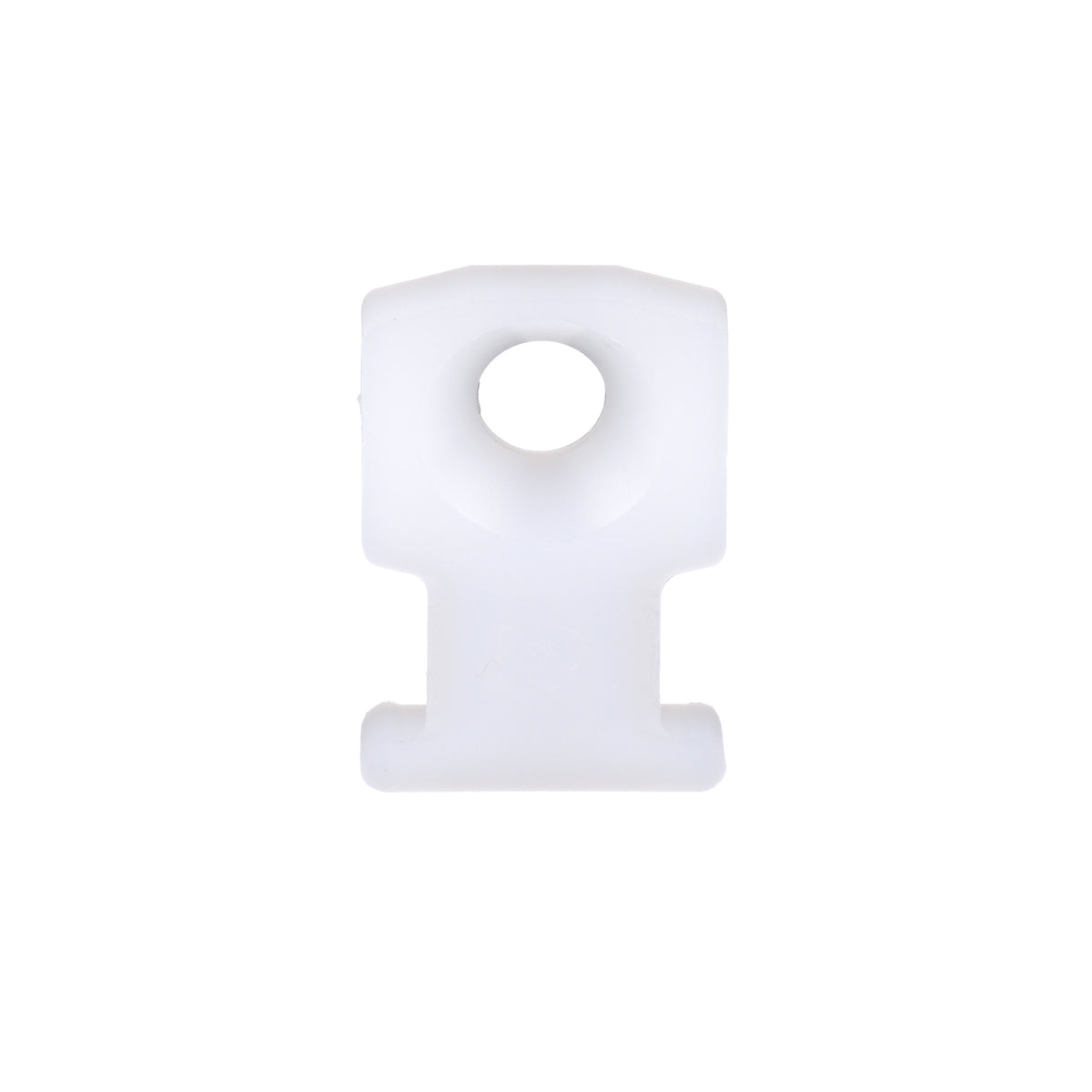

Panduit LPMS-S8-M Screw Applied Cable Tie Mounts have a low profile design that keeps the cable bundles secure and close to the surface. Installs with a #8 (M4) screw and with miniature cable ties. Made of Nylon 6.6, are natural in color and come in pa ckages of 1000.
Panduit Cable Tie Mount, Low Profile, 2-Way Tie Entry, Threaded Mounting, 0.19 in Maximum Tie Width, 3/4 in Base Length, 1/2 in Base Width, Nylon 6.6, Natural
Panduit - LPMS-S8-M - Features
- Low profile design keeps bundle close to mounting surface
- Small overall size
- Install with a screw or rivet for a strong, secure installation
- Polyamide (PA) insulation
- For use with miniature, intermediate and standard cable ties
- Low profile design keeps bundle close to mounting surface
- Small overall size allows use where space is limited
- Install with a screw or rivet for a strong, secure installation
- For indoor use only
- Material: Nylon 6.6
Specifications
Specifications
Panduit - LPMS-S8-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LPMS-S8-M |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Cable Tie Mount |
| Application | Low Profile Mount Designed to Secure Wire Bundles Where Space is Limited. |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #8 |
| Overall Length (In.) | 0.73 |
| Overall Length (mm) | 18.5 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
| Standards Met | CE Compliant, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358055 |
Panduit - LPMS-S8-M - Videos
| Panduit LPMS-S8-M Video 1 | Click to View |
|---|
