Panduit LWC19-A-C14 | Latching Wire Clip
Regular price
$82.41
Unit price
Brand: Panduit
|
SKU:
305882
Regular price
$82.41
Unit price
Description
Description

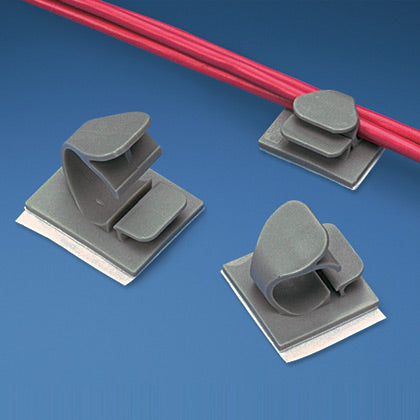

Panduit LWC19-A-C14 | Latching Wire Clip
With our innovative latching mechanism, our wire clips keeps your cables securely in place and protected from damage, ideal for creating a neat and organized workspace.
Adhesive backed latching wire clip, .19" (4.8mm) bundle, gray, standard package.
Panduit Latching Wire Clip, Adhesive Backed, 0.19 in Cable, 0.25 lb Static Load, Rubber Adhesive Mounting, Specifications: 0.19 in Dia Bundle, Gray Color, Nylon 6.6, 0.85 in L x 0.61 in W x 0.39 in H Dimensions
Panduit - LWC19-A-C14 - Features
- Route and secure cords and cables
- Push barb parts are for use with 0.11 in THK maximum panel and 0.22 in Dia hole
- Routes and secures cords and cables
- Convenient releasable latch
- Available in six sizes with releasable latch
- Rubber-based adhesive provides a strong and reliable bond
Specifications
Specifications
Panduit - LWC19-A-C14 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LWC19-A-C14 |
| UNSPSC Code | 31162900 |
| Product Type | Latching Wire Clip |
| Application | Route and Secure Cords and Cables |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Gray |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.19 |
| Maximum Bundle Diameter (mm) | 4.8 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 0.85 |
| Overall Length (mm) | 21.6 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.5 |
| Overall Height (In.) | 0.39 |
| Overall Height (mm) | 9.9 |
| Standards Met | cULus 1565 (Recognized), RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.113 |
| Vertical Static Load Capacity (lb) | 0.25 |
| Horizontal Static Load Capacity (kg) | 0.113 |
| Horizontal Static Load Capacity (lb) | 0.25 |
| UPC | 07498327222 |
Panduit - LWC19-A-C14 - Videos
| Panduit LWC19-A-C14 Video 1 | Click to View |
|---|
