Panduit LWC25-A-C14 Latching Wire Clip, Adhesive, .25"; (6.4mm...
Description
Description

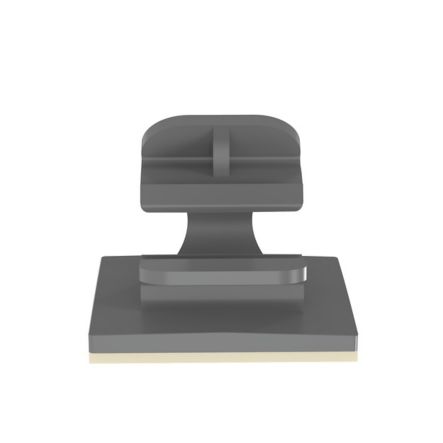

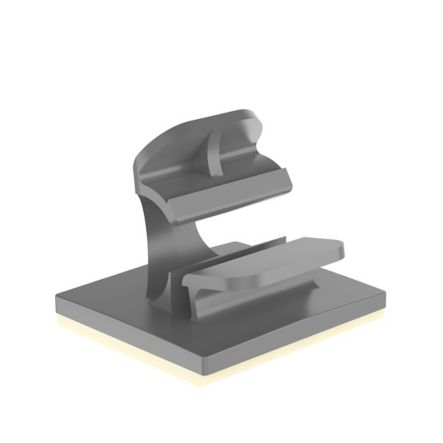

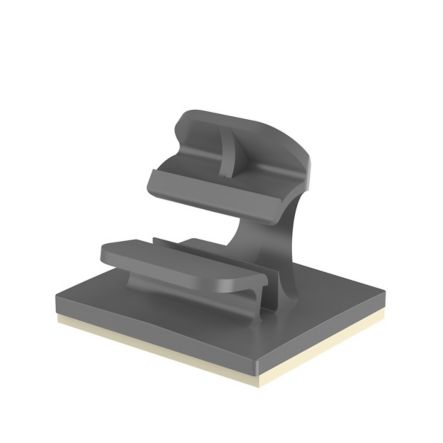

Panduit LWC25-A-C14 Latching Wire Clips with rubber adhesive backing, oute and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond and the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.25" (6.4mm) in diameter. Made of Nylon 6.6, are gray in color and come in packages of 100.
Panduit - LWC25-A-C14 - Features
- Adhesive Backed Latching Wire Clip
- Routes and secures cords and cables
- Convenient releasable latch
- Available in six sizes with releasable latch
- Rubber-based adhesive provides a strong and reliable bond
Specifications
Specifications
Panduit - LWC25-A-C14 - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - LWC25-A-C14 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LWC25-A-C14 |
| Item Description | LWC25-A-C14 Wire Clip, Gray, PA 6.6, Rubber Adh., 0.88x1", PK100 |
| Application | Route and Secure Cords and Cables |
| Product Type | Latching Wire Clip |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Gray |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.45 |
| Overall Height (mm) | 11.4 |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Standards Met | RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.2 |
| Vertical Static Load Capacity (lb) | 0.44 |
| Horizontal Static Load Capacity (kg) | 0.2 |
| Horizontal Static Load Capacity (lb) | 0.44 |
Panduit - LWC25-A-C14 - Package Information
| UPC | 07498327223 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0705 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.7051 |
Panduit - LWC25-A-C14 - Videos
| Video 1 | Click to View |
|---|
Documents and Downloads
Documents and Downloads
