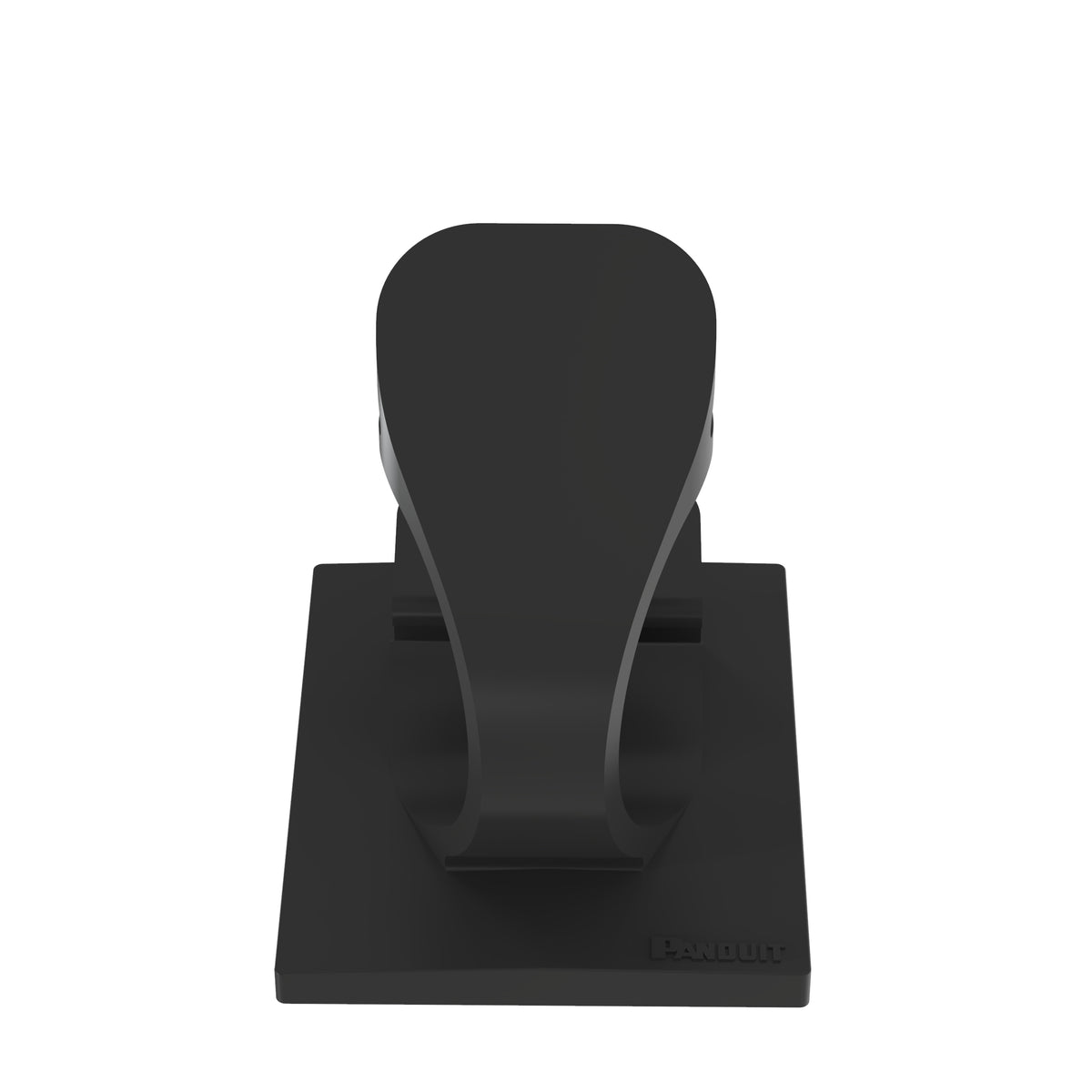

Panduit LWC50-A-L20 | Adhesive Backed Latching Wire Clip
Description
Description
Panduit Latching Wire Clip, Adhesive Backed, 1/2 in Cable, 0.63 lb Static Load, Rubber Adhesive Mounting, Specifications: 1/2 in Dia Bundle, Black Color, Nylon 6.6, 1.26 in L x 1 in W x 0.67 in H Dimensions
With our innovative latching mechanism, our wire clips keeps your cables securely in place and protected from damage, ideal for creating a neat and organized workspace.
Panduit LWC50-A-L20 Latching Wire Clips with rubber adhesive backing, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond a nd the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.50 (12.7mm) in diameter. Made of Nylon 6.6, are black in color and come in packages of 50.
Panduit - LWC50-A-L20 - Features
- Applications: Route and Secure Cords and Cables
- Route and secure cords and cables
- Push barb parts are for use with 0.11 in THK maximum panel and 0.22 in Dia hole
Specifications
Specifications
Panduit - LWC50-A-L20 - Specifications
| Category | Clips And Clamps |
|---|---|
| Height | None |
| Ind/Supp Std/Cust Spec | None |
| Length | None |
| Product Type | Clip |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| UNSPSC Code | 31162900 |
| Technical Information | RoHS Complaint |
| Product Type | Latching Wire Clip |
| Application | Route and Secure Cords and Cables |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Black |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1.26 |
| Overall Length (mm) | 32 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.67 |
| Overall Height (mm) | 17 |
| Standards Met | RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.286 |
| Vertical Static Load Capacity (lb) | 0.63 |
| Horizontal Static Load Capacity (kg) | 0.286 |
| Horizontal Static Load Capacity (lb) | 0.63 |
| UPC | 07498371002 |
Panduit - LWC50-A-L20 - Package Information
| UPC | 07498371002 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.0705 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.7051 |
