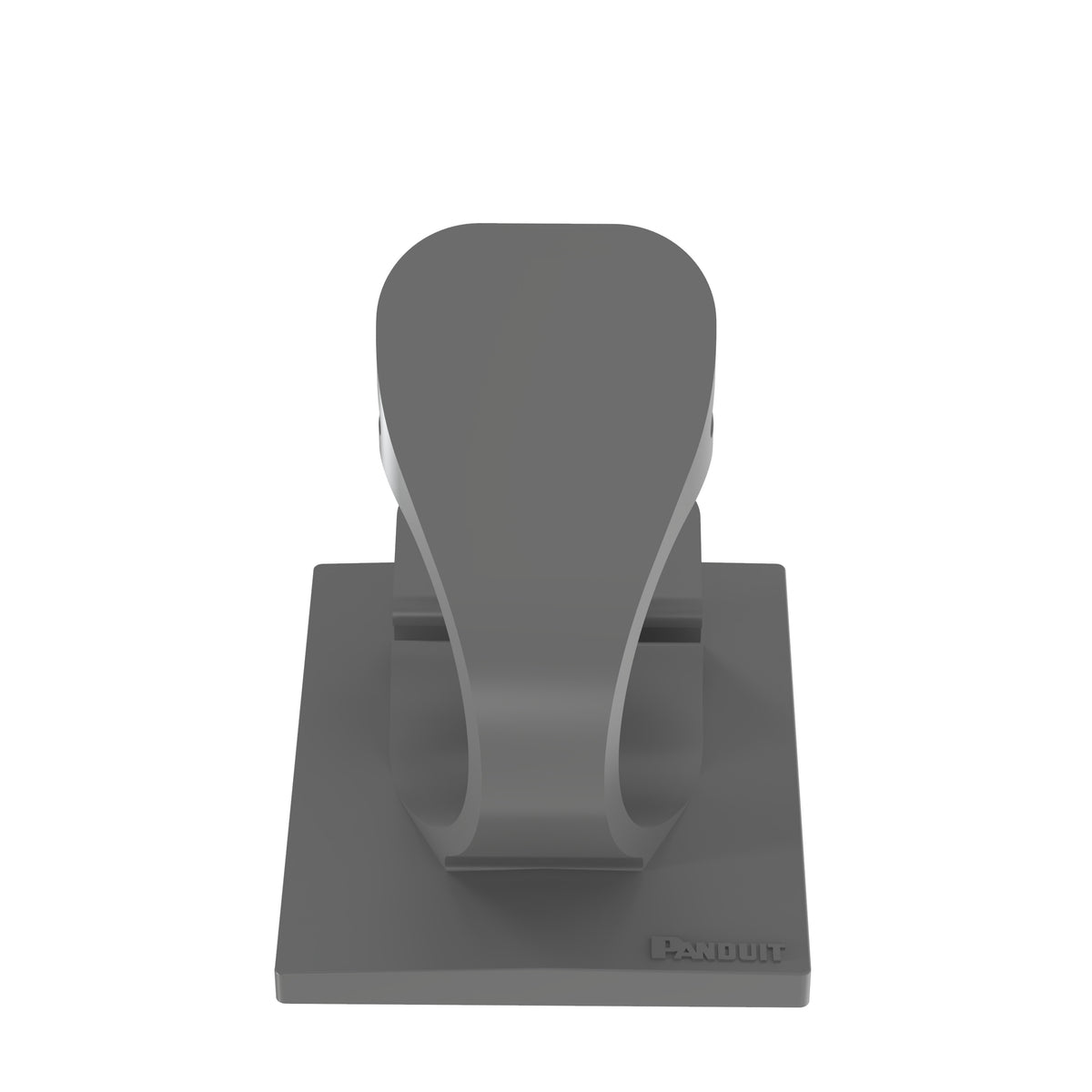

Panduit LWC50-A-T14 | Adhesive Backed Latching Wire Clip
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Latching Wire Clip, Adhesive Backed, 1/2 in Conduit, 0.63 lb, Rubber Adhesive Tape Mount, For Use With: Panduit Cable Ties, 1/2 in Dia Bundle, Gray Color, Nylon 6.6, 1.26 in L x 1 in W x 0.67 in H
With our innovative latching mechanism, our wire clips keeps your cables securely in place and protected from damage, ideal for creating a neat and organized workspace.
Panduit LWC50-A-T14 Latching Wire Clips with rubber adhesive backing, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond a nd the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.50 (12.7mm) in diameter. Made of Nylon 6.6, are gray in color and come in packages of 25.
Panduit - LWC50-A-T14 - Features
- Applications: Route and Secure Cords and Cables
- Releasable latches allow addition or removal of cables
- Superior adhesive for long-term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
Specifications
Specifications
Panduit - LWC50-A-T14 - Specifications
| Category | Clips And Clamps |
|---|---|
| Height | None |
| Ind/Supp Std/Cust Spec | None |
| Length | None |
| Product Type | Clip |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| UNSPSC Code | 31162900 |
| Technical Information | RoHS Complaint |
| Product Type | Latching Wire Clip |
| Application | Route and Secure Cords and Cables |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Gray |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1.26 |
| Overall Length (mm) | 32 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.67 |
| Overall Height (mm) | 17 |
| Standards Met | RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.286 |
| Vertical Static Load Capacity (lb) | 0.63 |
| Horizontal Static Load Capacity (kg) | 0.286 |
| Horizontal Static Load Capacity (lb) | 0.63 |
| UPC | 07498327231 |
Panduit - LWC50-A-T14 - Package Information
| UPC | 07498327231 |
|---|---|
| Standard Packaging Quantity | 200 |
| Standard Packaging Volume (cf) | 0.2163 |
| Standard Ctn. Quantity | 2000 |
| Standard Ctn. Volume (cf) | 2.1626 |
Panduit - LWC50-A-T14 - Videos
| Panduit LWC50-A-T14 Videos | Click to View |
|---|
