Panduit LWC50-H25-L | Latching Wire Clip | UPC - 07498327213
Description
Description
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.

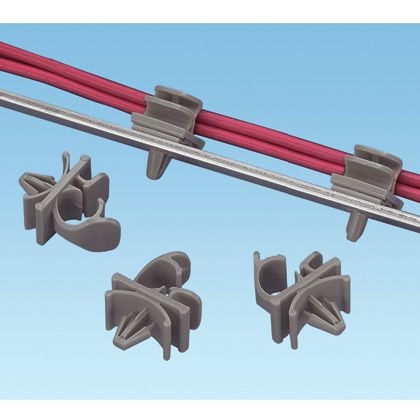

Panduit Wire Clip, Latching, 1/2 in Cable, Push Barb Mounting, Specifications: 1/2 in Dia Bundle, Natural Color, Nylon 6.6, 1.25 in L x 0.76 in W x 0.78 in H Dimensions
Features + Benefits
- Convenient releasable latch
- Used to route and secure cords and cables
Panduit LWC50-H25-L Key Specs
| Application | Route and Secure Cords and Cables |
| Product Type | Latching Wire Clip |
| Body Material | Nylon 6.6 |
| Color | Natural |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Maximum Compatible Panel Thickness (In.) | 0.1 |
| Maximum Compatible Panel Thickness (mm) | 2.7 |
| Mount Method | Push Barb |
| Mounting Hole Diameter (In.) | 0.23 |
| Mounting Hole Diameter (mm) | 6 |
| Overall Height (In.) | 1.2 |
| Overall Height (mm) | 30.5 |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Overall Width (In.) | 0.76 |
| Overall Width (mm) | 19.3 |
| Standards Met | RoHS Complaint |
Panduit LWC50-H25-L Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LWC19-A-C Product Page 4 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LWC19-A-C Product Page 3 | Download and View |
| Part Drawings | Part Drawing - PDF - GB0167BA A RV 00B-LWC50H25 | Download and View |
