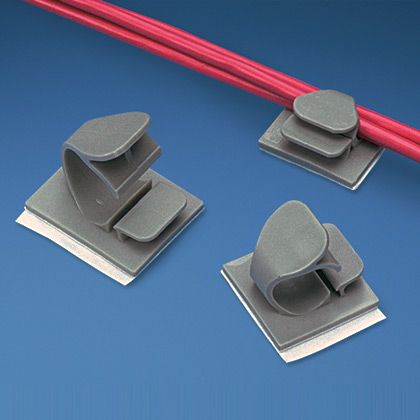

Panduit LWC75-A-L | Latching Wire Clip
Description
Description
With our innovative latching mechanism, our wire clips keeps your cables securely in place and protected from damage, ideal for creating a neat and organized workspace.
Adhesive Backed Latching Wire Clip
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Latching Wire Clip, Adhesive Backed, 3/4 in Cable, 0.93 lb Static Load, Rubber Adhesive Mounting, Specifications: 225 A, 27/31/36/40/44 in W Box Range, Nylon 6.6, 1.48 in L x 1.24 in W x 0.9 in H Dimensions
Panduit - LWC75-A-L - Features
- Releasable latches allow addition or removal of cables
- Superior adhesive for long-term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
- Routes and secures cords and cables
- Convenient releasable latch
- Available in six sizes with releasable latch
- Rubber-based adhesive provides a strong and reliable bond
Specifications
Specifications
Panduit - LWC75-A-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LWC75-A-L |
| UNSPSC Code | 31162900 |
| Product Type | Latching Wire Clip |
| Application | Route and secure cords and cables |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Natural |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1.48 |
| Overall Length (mm) | 37.6 |
| Overall Width (In.) | 1.24 |
| Overall Width (mm) | 31.5 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Standards Met | cULus 1565 (Recognized), RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.425 |
| Vertical Static Load Capacity (lb) | 0.937 |
| Horizontal Static Load Capacity (kg) | 0.425 |
| Horizontal Static Load Capacity (lb) | 0.937 |
| UPC | 07498327202 |
Panduit - LWC75-A-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - LWC75-A-L - Videos
| Panduit LWC75-A-L Video 1 | Click to View |
|---|
