Brand: Panduit
|
SKU:
LWC75-A-L14

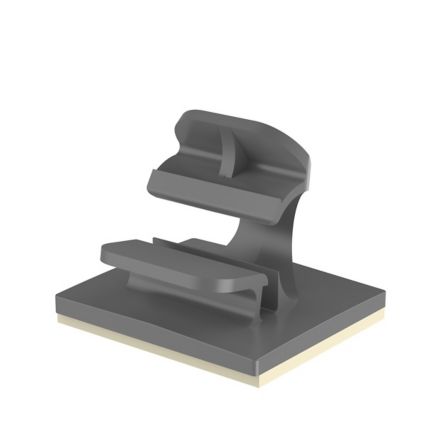

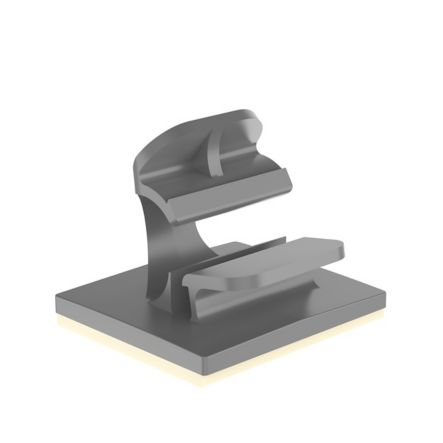

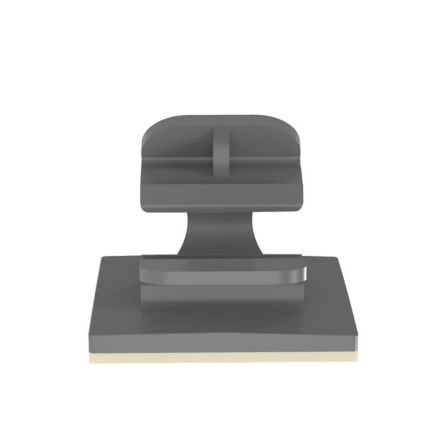

Panduit LWC75-A-L14 | LWC75-A-L14 Latching Wire Clip
Regular price
$202.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LWC75-A-L14 | LWC75-A-L14 Latching Wire Clip
Regular price
$202.07
Unit price
Description
Description
Panduit LWC75-A-L14 | LWC75-A-L14 Latching Wire Clip
Adhesive backed latching wire clip, .75" (19.1mm) bundle, gray, standard package.
Panduit - LWC75-A-L14 - Features
- Adhesive Backed Latching Wire Clip
- Routes and secures cords and cables
- Convenient releasable latch
- Available in six sizes with releasable latch
- Rubber-based adhesive provides a strong and reliable bond
Specifications
Specifications
Panduit - LWC75-A-L14 - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - LWC75-A-L14 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LWC75-A-L14 |
| Item Description | LWC75-A-L14 Latching Wire Clip |
| Application | Route and secure cords and cables |
| Product Type | Latching Wire Clip |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Gray |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Overall Length (In.) | 1.48 |
| Overall Length (mm) | 37.6 |
| Overall Width (In.) | 1.24 |
| Overall Width (mm) | 31.5 |
| Standards Met | cULus 1565 (Recognized), RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.425 |
| Vertical Static Load Capacity (lb) | 0.937 |
| Horizontal Static Load Capacity (kg) | 0.425 |
| Horizontal Static Load Capacity (lb) | 0.937 |
Panduit - LWC75-A-L14 - Package Information
| UPC | 07498327226 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0860 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.8599 |
Panduit - LWC75-A-L14 - Videos
| Video 1 | Click to View |
|---|
