Brand: Panduit
|
SKU:
9788227

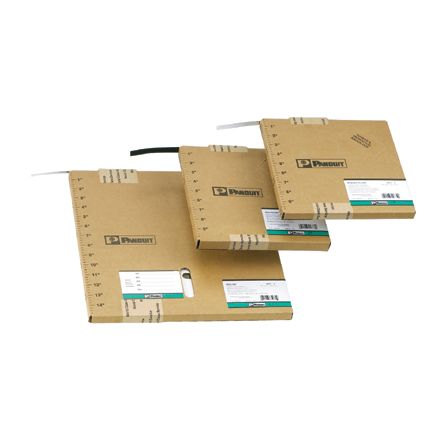

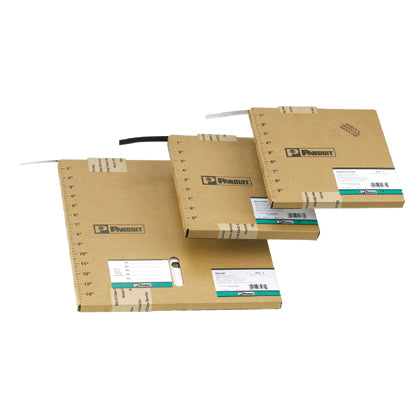

Panduit MBEH-TLR | Custom Length Banding System | UPC - 07498344653
Regular price
$380.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MBEH-TLR | Custom Length Banding System | UPC - 07498344653
Regular price
$380.17
Unit price
Description
Description
Panduit Pan-Steel Custom Length Banding, Extra Heavy Cross Section Self-Locking, Series: MBEH, 1/2 in Strapping Width, 250 ft Overall Length, 0.01 in Thickness, 300 lb Breaking, 304 Stainless Steel, Polyester Coated, Natural, 1 Piece
Features + Benefits
- Provides job site versatility with minimum inventory
- Packaging speeds removal of steel and includes bundle diameter cut-off guide
- Polyester coating provides additional edge protection and prevents corrosion between dissimilar metals
- UV resistant, low smoke, halogen-free material
- Custom length continuous banding can be cut to just the right length to guarantee a snug fit for your specific project
- The banding is built with 304 stainless steel, so it suits indoor and outdoor environments
- For applications that require 1 in Dia bundle
- Without MTHEH-C head
Panduit MBEH-TLR | Custom Length Banding System | UPC - 07498344653 Key Specs
| Product Type | Custom Length Banding System |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Sub Brand | Pan-Steel |
| Material | Stainless Steel Type 304 |
| Maximum Installation Temperature (°C) | 538 |
| Maximum Installation Temperature (°F) | 1000 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 1335 |
| Minimum Loop Tensile Strength (lb) | 300 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 3000 |
| Overall Length (mm) | 76000 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
Panduit MBEH-TLR | Custom Length Banding System | UPC - 07498344653 Data Sheets
| Part Drawings | Part Drawings - PDF - RT2HT CD_TM25754A01_00 | Download and View |
| Part Drawings | Part Drawings - PDF - RT2HTN CD_TM25753A01_00 | Download and View |
| Part Drawings | Custom Banding - N41199 | Download and View |
Panduit MBEH-TLR | Custom Length Banding System | UPC - 07498344653 Environmental Information
| Panduit's RoHS Statement | Download and View |
