Panduit MBEH-TLR | Pan-Steel MBEH-TLR Custom Length Banding System
Regular price
$3.00
Unit price
Brand: Panduit
|
SKU:
9788227-FT
Regular price
$3.00
Unit price
Description
Description

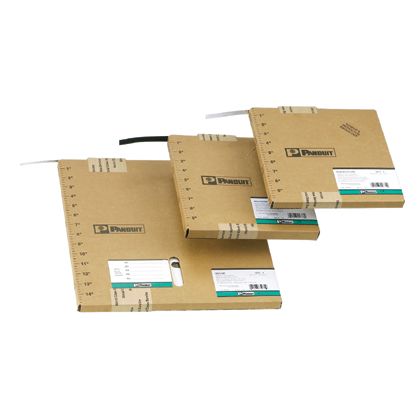

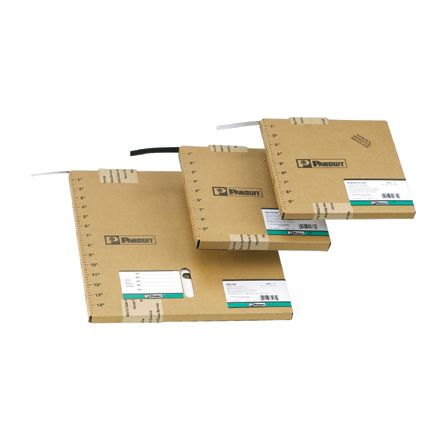

Panduit MBEH-TLR | Pan-Steel MBEH-TLR Custom Length Banding System
Panduit Custom-Length Continuous Banding can be cut to just the right length to guarantee a snug fit for your specific project. Plus, the banding is built with 304 stainless steel, so it suits indoor and outdoor environments. Extra-heavy, 250'L (76m), Tensile Strength: 1335, Bundles at least 1.0 (25mm), 1pc. MTHEH-C head not included.
Panduit MBEH-TLR - BANDING - SS BANDING 304 250' ROLL
Specifications
Specifications
Panduit - MBEH-TLR - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MBEH-TLR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MBEH-TLR |
| Item Description | Pan-Steel MBEH-TLR Custom Length Banding System |
| Product Type | Custom Length Banding System |
| Sub Brand | Pan-Steel |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 3000 |
| Overall Length (mm) | 76000 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.015 |
| Body Thickness (mm) | 0.38 |
| Minimum Loop Tensile Strength (N) | 1335 |
| Minimum Loop Tensile Strength (lb) | 300 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| For Use With | RT2HT, ST2MT(MBEH,MBCEH ONLY), PBTMT, RT2HTN AND MTHEH-C head |
| Application | General |
Panduit - MBEH-TLR - Package Information
| UPC | 07498344653 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0472 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
