Brand: Panduit
|
SKU:
327509
Panduit MBH-TLR | Pan-Steel MBH-TLR Banding System, SS 304, Natural, 250lb Loop Tensile, 250'
Regular price
$270.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MBH-TLR | Pan-Steel MBH-TLR Banding System, SS 304, Natural...
Regular price
$270.82
Unit price
Description
Description

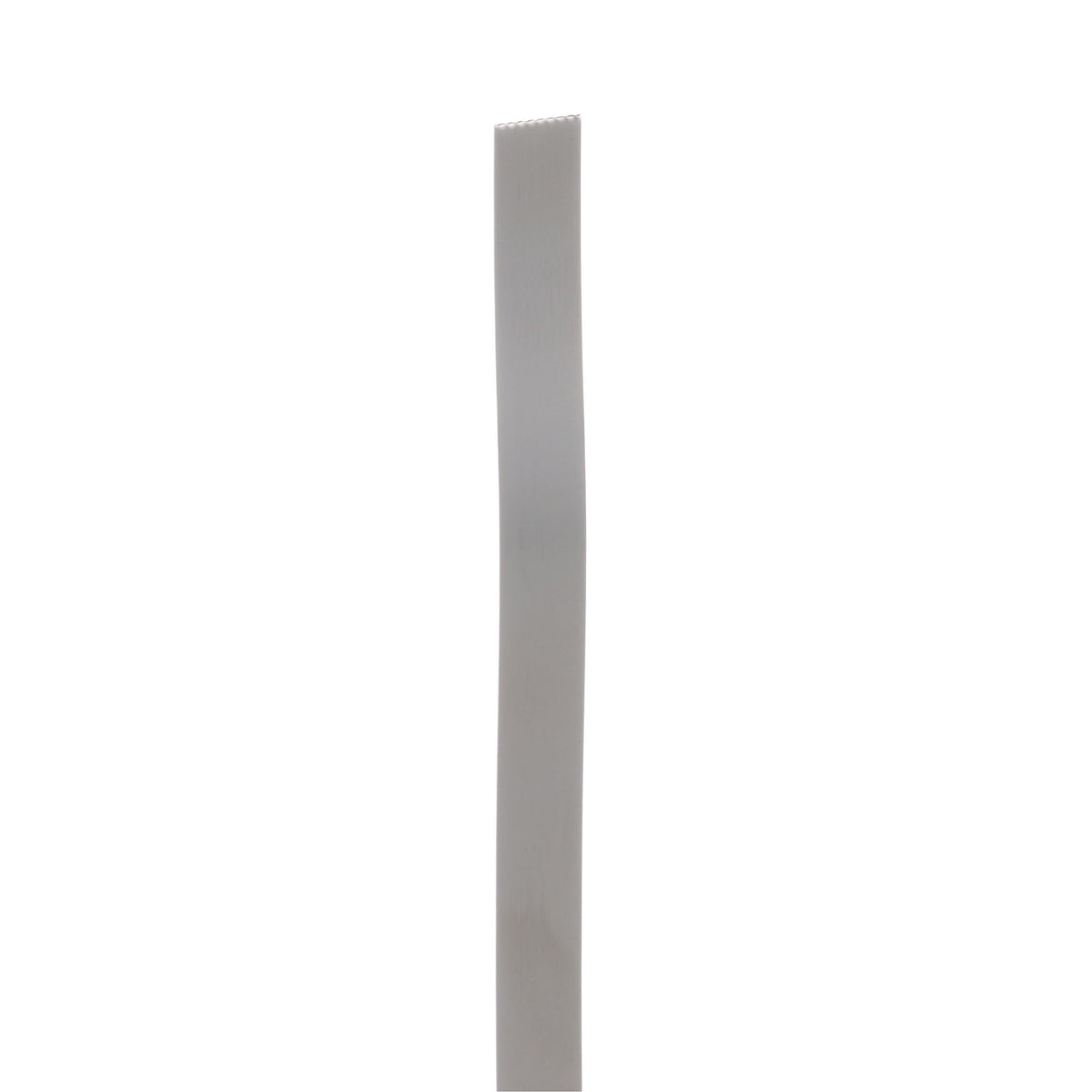

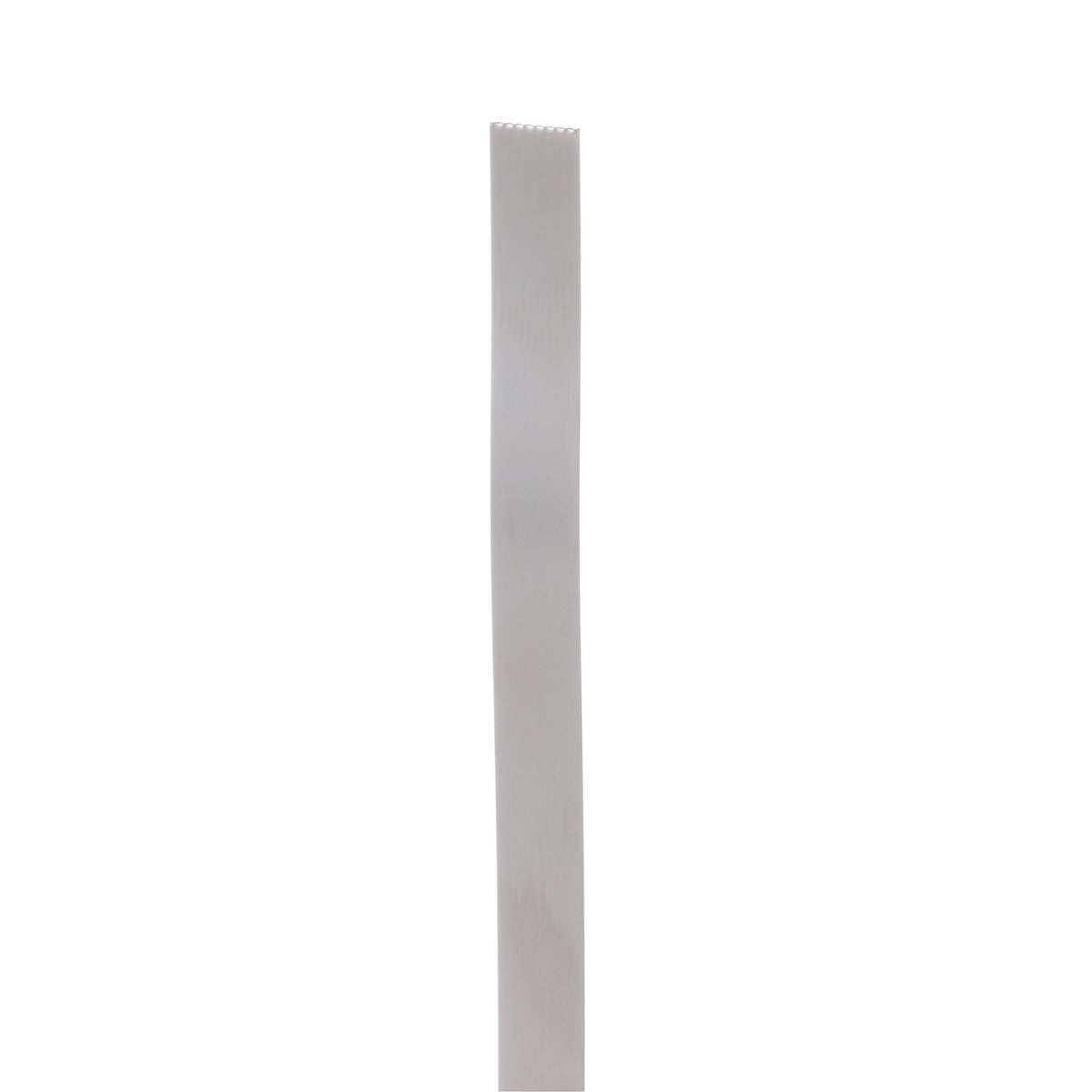

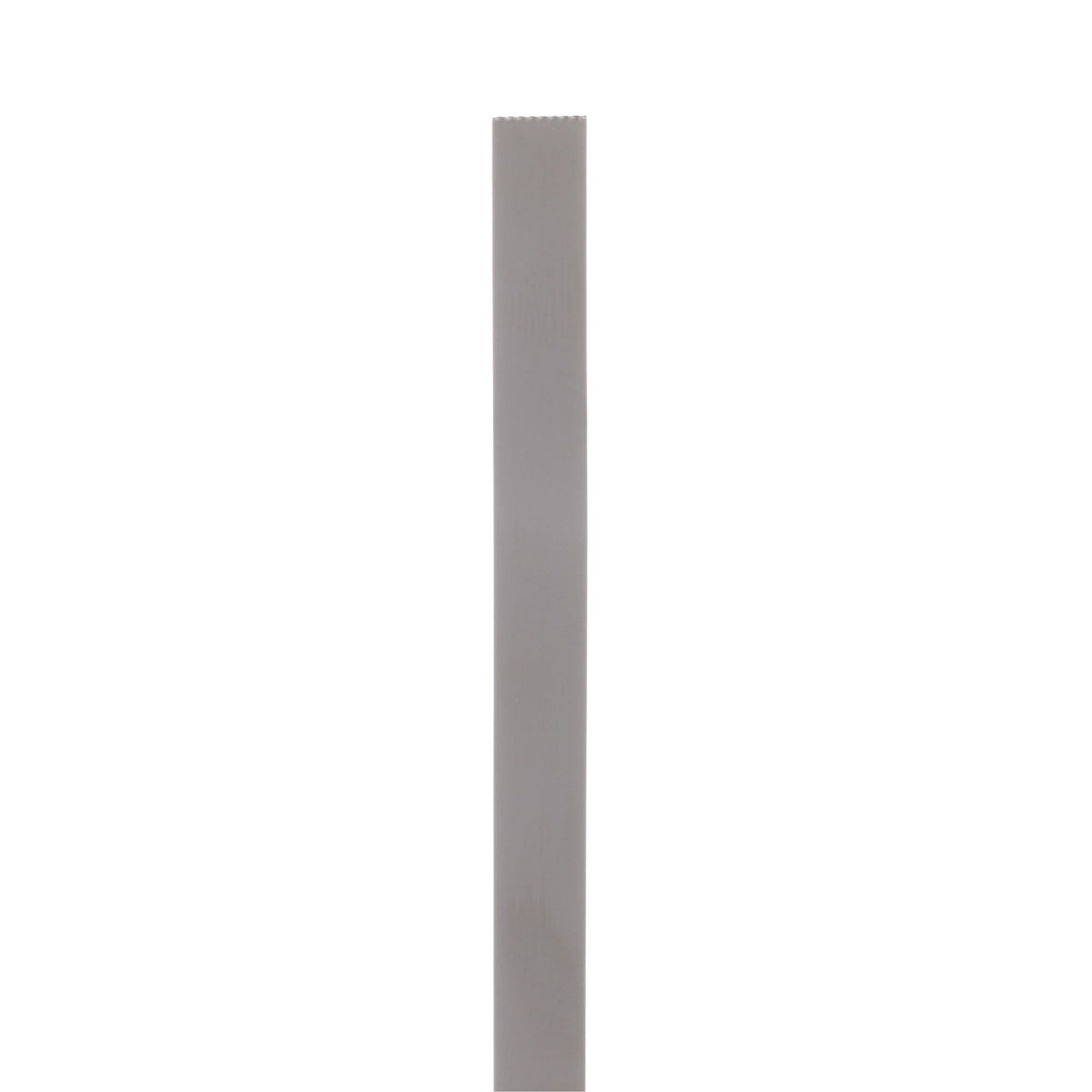

Panduit MBH-TLR | Pan-Steel MBH-TLR Banding System, SS 304, Natural, 250lb Loop Tensile, 250'

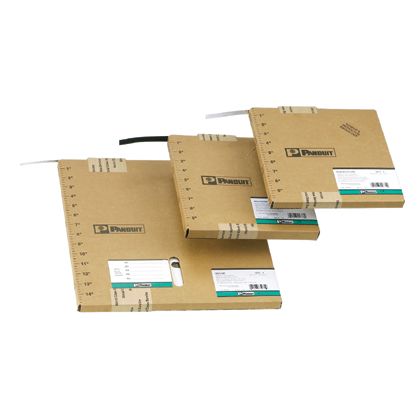

The MBH-TLR Pan-Steel custom length, continuous banding is made of 304 Stainless Steel for general purpose (indoor and outdoor) applications. Can be cut to length in the field for application versatility. Convenient product packaging offers a metric and english measuring guide, as well as a diameter cut-off guide for common bundle diameters.
Panduit Pan-Steel - Banding tie - indoor, outdoor - 249 ft - natural - MBH-TLR.
Specifications
Specifications
Panduit - MBH-TLR - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MBH-TLR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MBH-TLR |
| Item Description | Pan-Steel MBH-TLR Banding System, SS 304, Natural, 250lb Loop Tensile, 250' |
| Product Type | Custom Length Banding System |
| Sub Brand | Pan-Steel |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 3000 |
| Overall Length (mm) | 76200 |
| Body Width (In.) | 0.31 |
| Body Width (mm) | 7.9 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.25 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| For Use With | PTMT,GS4MT,ST2MT,HTMT, ST3MT and MTHH-C banding head |
Panduit - MBH-TLR - Package Information
| UPC | 07498354384 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0496 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - MBH-TLR - Videos
| Video 1 | Click to View |
|---|
