Panduit MC37X50IG2 | Panduct MC37X50IG2 Base/Cover
Description
Description

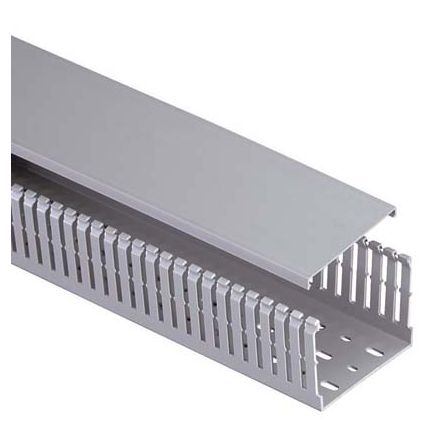

The MC37X50IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 37.1 mm x 47.8 mm (1.46" x 1.88"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 20 Meters (10 sticks each) - Bases & Covers per package.
Panduit MC37X50IG2 - DUCT - WIRING DUCT METRIC -NARROW
Specifications
Specifications
Panduit - MC37X50IG2 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - MC37X50IG2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MC37X50IG2 |
| Item Description | Panduct MC37X50IG2 Base/Cover |
| Product Type | Base/Cover |
| Color | International Gray |
| Cover Part Number | C37WH2 (included) |
| Flammability Rating | UL94 V-0 |
| Includes | Cover |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | DIN Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | MC |
| Overall Height (In.) | 1.88 |
| Overall Height (mm) | 47.8 |
| Overall Length (ft.) | 6.6 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 1.46 |
| Overall Width (mm) | 37.1 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
| Part Features | Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together. |
Panduit - MC37X50IG2 - Package Information
| UPC | 07498374296 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.1160 |
| Standard Ctn. Quantity | 20 |
| Standard Ctn. Volume (cf) | 1.1596 |
