Panduit MC62X62IG2 | Base and Cover | UPC - 07498374309
Regular price
$52.21
Unit price
Brand: Panduit
|
SKU:
MC62X62IG2
Regular price
$52.21
Unit price
Description
Description

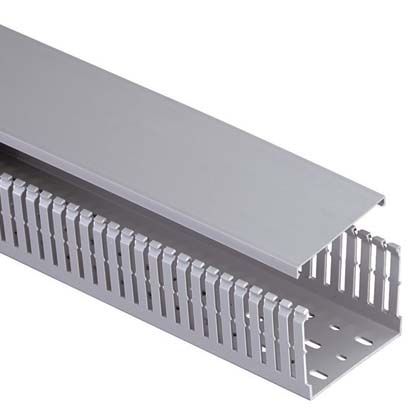

Panduit Panduct Slotted Wall Wiring Duct, Type MC, 62 mm Width, 2 m Length, Narrow Slot, 0.2 in Slot, DIN Rail/Hole Mounting, Lead-Free PVC, International Gray
Features + Benefits
- Metric PVC narrow finger and slot design closely matches the spacing of high density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Provided with DIN 43 659 mounting holes
Panduit MC62X62IG2 | Base and Cover | UPC - 07498374309 Key Specs
| Product Type | Base and Cover |
| Color | International Gray |
| Cover Part Number | C62WH2 (included) |
| Flammability Rating | UL94 V-0 |
| Includes | Cover |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | DIN Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | MC |
| Overall Height (In.) | 2.35 |
| Overall Height (mm) | 59.7 |
| Overall Length (ft.) | 6.6 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 2.44 |
| Overall Width (mm) | 62 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
Panduit MC62X62IG2 | Base and Cover | UPC - 07498374309 Data Sheets
| Part Drawings | Metric Narrow Slot Duct - MC62X62 part dwg | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - MC25X25IG2 Product Page | Download and View |
Panduit MC62X62IG2 | Base and Cover | UPC - 07498374309 Environmental Information
| Panduit's RoHS Statement | Download and View |
