Panduit MDC48D | Micro Data Center | UPC - 61305616975
Regular price
$5,792.57
Unit price
Brand: Panduit
|
SKU:
9807375
Regular price
$5,792.57
Unit price
Description
Description

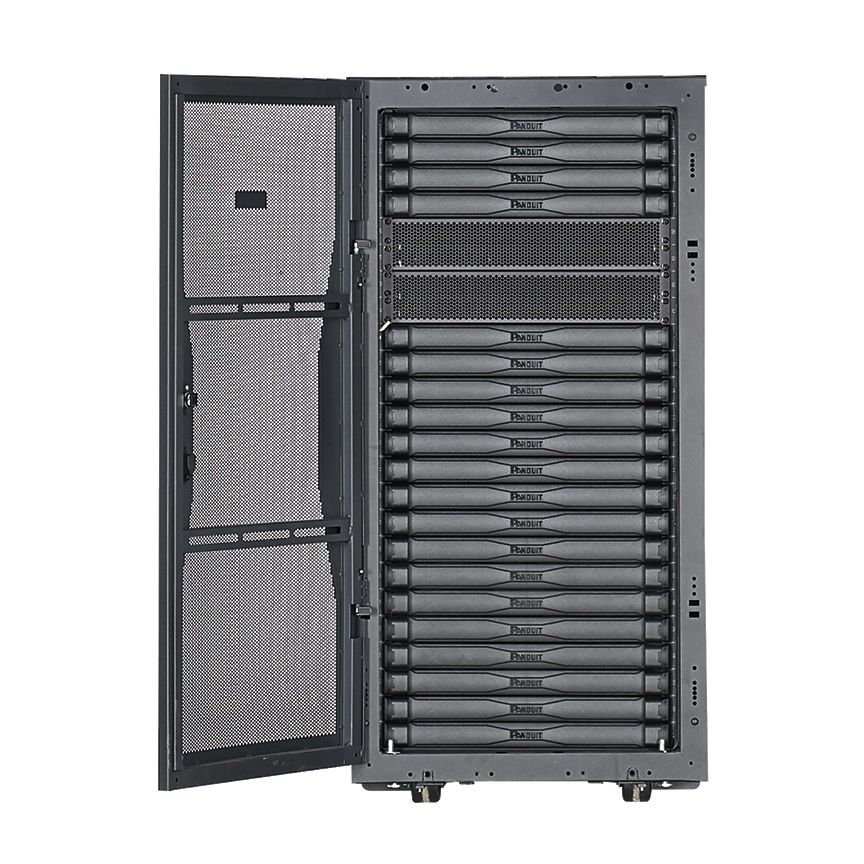

Panduit Net-Access Micro Data Center, Pre-Configured, 23.9 in W, 42 in D, 24U Rack Unit, 2000 lb, Rack Mount, Polyester/Steel, Epoxy Powder Coated, Black
Features + Benefits
- Panduit cabinets, thermal ducting, Cool Boot product, integral blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution by reducing bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
- N-type and S-type cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
- Integrated casters to provide easy roll to position, cable management ready rails included help speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability, provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Cabinets are powder coated in a durable, low maintenance polyester epoxy paint
- Front single hinge door and split perforated rear door with 69% open perforation
- Without side panel
- Heavy duty casters and leveling legs
- Adjustable front and fear equipment rails
- Front and rear equipment rails accommodate cable management fingers
- Fully integral bonded without the use of grounding wires equipment rails, door and side panels
- 3000 lb static load rating and 2500 lb rolling load rating
Panduit MDC48D Key Specs
| Note | MDC48D replaces CQSMDC48 |
| Sub Brand | Net-Access |
| Product Type | Micro Data Center |
| Overall Depth (In.) | 42 |
| Overall Depth (mm) | 1066 |
| Overall Height (In.) | 48.4 |
| Overall Height (mm) | 1230 |
| Overall Width (In.) | 23.9 |
| Overall Width (mm) | 606 |
| Color | Black |
| Number of Rack Units | 24 |
| Standards Met | EIA-310-E, TIA/EIA-942, UL2416, RoHS Compliant |
| Application | Industrial Automation |
| Part Features | Ships on Dynamic Pallet |
Panduit MDC48D Data Sheets
| Part Drawings | MDC48D-CUSTOMER DRAWING | Download and View |
| Specification Sheets | Pre-Configured Micro Data Center (MDC) | Download and View |
| Installation Documents | Pre-Configured MDC: IA-CD-0003 | Download and View |
| Flyers | Pre-Configured MDC: ENG | Download and View |
| White Papers | Protecting The Critical Structure That Makes Up The Industrial Network | Download and View |
