Brand: Panduit
|
SKU:
10332141
Panduit MEC100-2PV-C | MEC100-2PV-C Cable Clip, 2-wire, SS, Clip-On, 10 Gauge, PK100
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MEC100-2PV-C | MEC100-2PV-C Cable Clip, 2-wire, SS, Clip-On...
Regular price
$1.46
Unit price
Description
Description
Panduit MEC100-2PV-C | MEC100-2PV-C Cable Clip, 2-wire, SS, Clip-On, 10 Gauge, PK100
Stainless Steel Metal Edge Clip for Solar Applications. Can be installed on a Panel thickness ranging from 0.051" to 0.098" and can accommodate 1 or 2 wires with a diameter range of 0.200" to 0.300". Use when cable orientation is Parallel to the Outer edge of the panel.

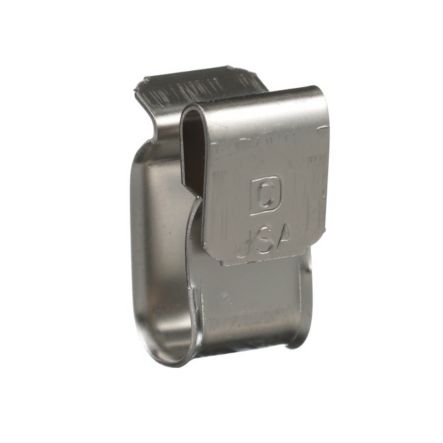

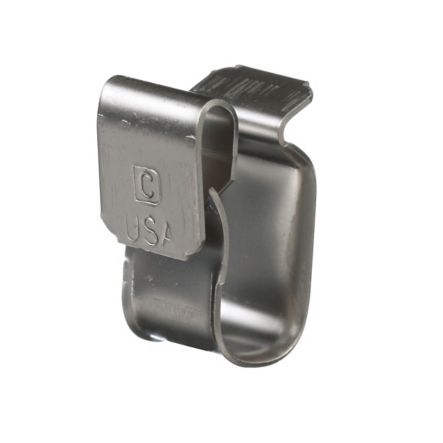

Panduit MEC100-2PV-C | Metal Edge Clip, 1 To 2 Pv Wires
Panduit - MEC100-2PV-C - Features
- Stainless Steel Metal Edge Clip for Solar Applications. Can be installed on a Panel thickness ranging from 0.051" to 0.098" and can accommodate 1 or 2 wires with a diameter range of 0.200" to 0.300". Use when cable orientation is Parallel to the Outer edge of the panel.
- Technical Information: cULus 1565 (E136577), RoHS Compliant
Specifications
Specifications
Panduit - MEC100-2PV-C - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - MEC100-2PV-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MEC100-2PV-C |
| Item Description | MEC100-2PV-C Cable Clip, 2-wire, SS, Clip-On, 10 Gauge, PK100 |
| Application | For routing PV wires along solar panel modules |
| Note | Clips accommodate one to two 10 gauge PV wires for routing parallel to the panel edge |
| Product Type | Wire Clip |
| Body Material | Stainless Steel |
| Color | Silver |
| Environment | Indoor/Outdoor |
| Maximum Bundle Diameter (In.) | 0.3 |
| Maximum Bundle Diameter (mm) | 7.6 |
| Maximum Compatible Panel Thickness (In.) | 0.098 |
| Maximum Compatible Panel Thickness (mm) | 2.5 |
| Mount Method | Edge Clip |
| Overall Height (In.) | 0.73 |
| Overall Height (mm) | 18.5 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 9.7 |
| Resistance Properties | Weather Resistant |
| Standards Met | cULus 1565 (E136577), RoHS Compliant |
| Part Features | Rolled Edges, Parallel Cable Orientation |
Panduit - MEC100-2PV-C - Package Information
| UPC | 61305676668 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0115 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.5729 |
Panduit - MEC100-2PV-C - Videos
| Video 1 | Click to View |
|---|
