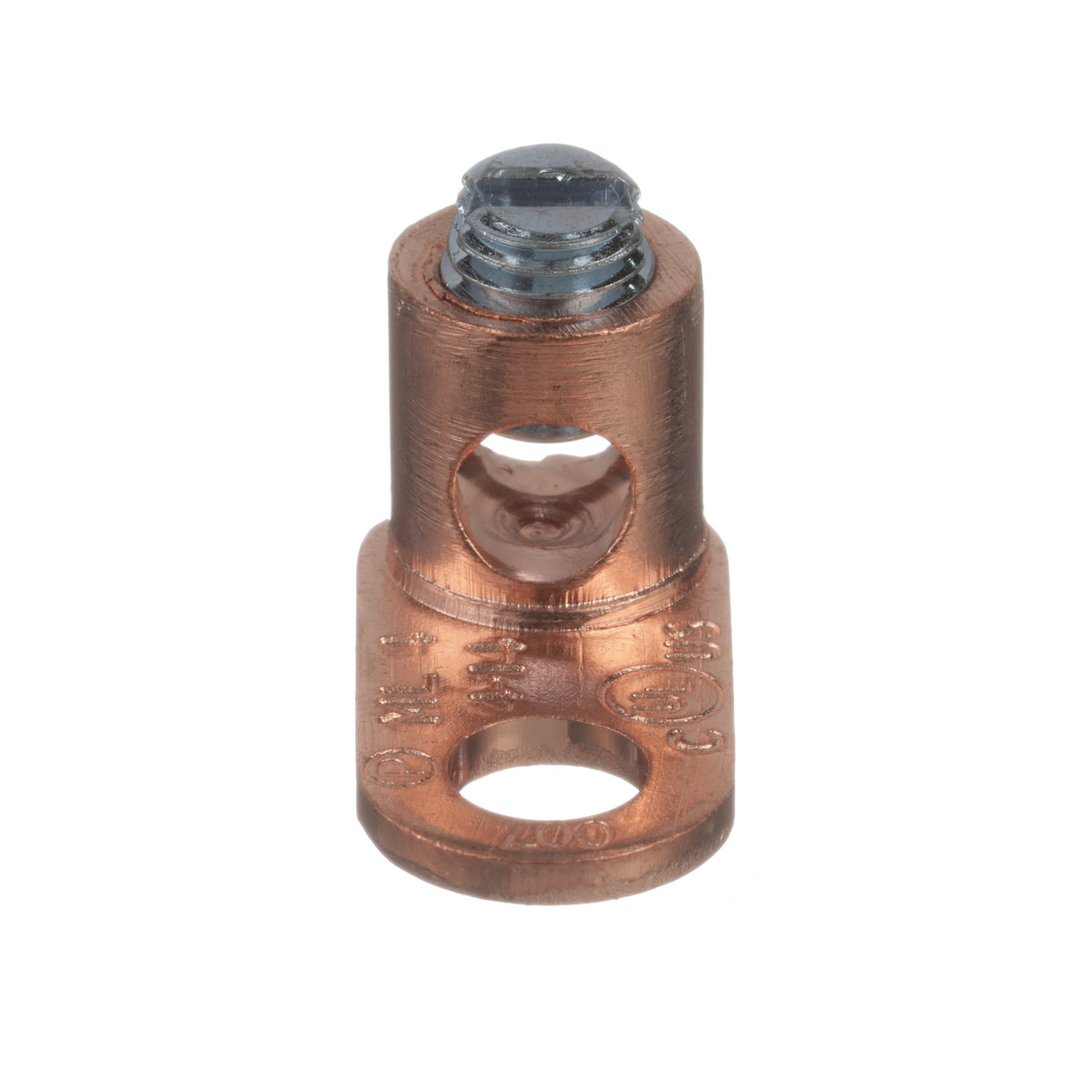

Panduit ML4-CY | Mechanical Connectors - Lugs | UPC - 07498359628
Regular price
$5.87
Unit price
Brand: Panduit
|
SKU:
ML4-CY
Regular price
$5.87
Unit price
Description
Description
Panduit Mechanical Lug, Single Barrel, Series: ML Series, Solid/Stranded Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.63 in L x 0.54 in W x 0.09 in THK Tongue, Straight Tongue, 600 VAC, Specifications: Slotted Head Screw, 90 deg C, Cast Copper, 1.11 in L x 0.54 in W x 0.55 in H Dimensions
Features + Benefits
- Made from high strength electrolytic copper with steel screw to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel set screw provides high strength, durable electrical contact between conductor and connector
- Flat bottom allows for complete contact with mounting surface
- Compact design saves space
- Wire range taking, inspection window, high strength copper, compact design and flat for complete surface contact
Panduit ML4-CY | Mechanical Connectors - Lugs | UPC - 07498359628 Key Specs
| Application | Copper Code Conductor |
| Note | ML4-CY replaces ML4-C |
| Product Type | Mechanical Connectors - Lugs |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG SOL) | 4 |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Stud Hole Size (In.) | 1/4 |
| Number of Holes | 1 |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Tongue Length (In.) | 0.63 |
| Tongue Length (mm) | 16 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.2 |
| Tongue Width (In.) | 0.54 |
| Tongue Width (mm) | 13.7 |
| Overall Height (In.) | 0.55 |
| Overall Height (mm) | 13.9 |
Panduit ML4-CY | Mechanical Connectors - Lugs | UPC - 07498359628 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - VTA-0-Q Product Page | Download and View |
| Part Drawings | ML SERIES COPPER MECHANICAL LUGS: C41569-11 | Download and View |
| Videos | Getting Power to the Data Center Video | Download and View |
Panduit ML4-CY | Mechanical Connectors - Lugs | UPC - 07498359628 Environmental Information
| Panduit's RoHS Statement | Download and View |
