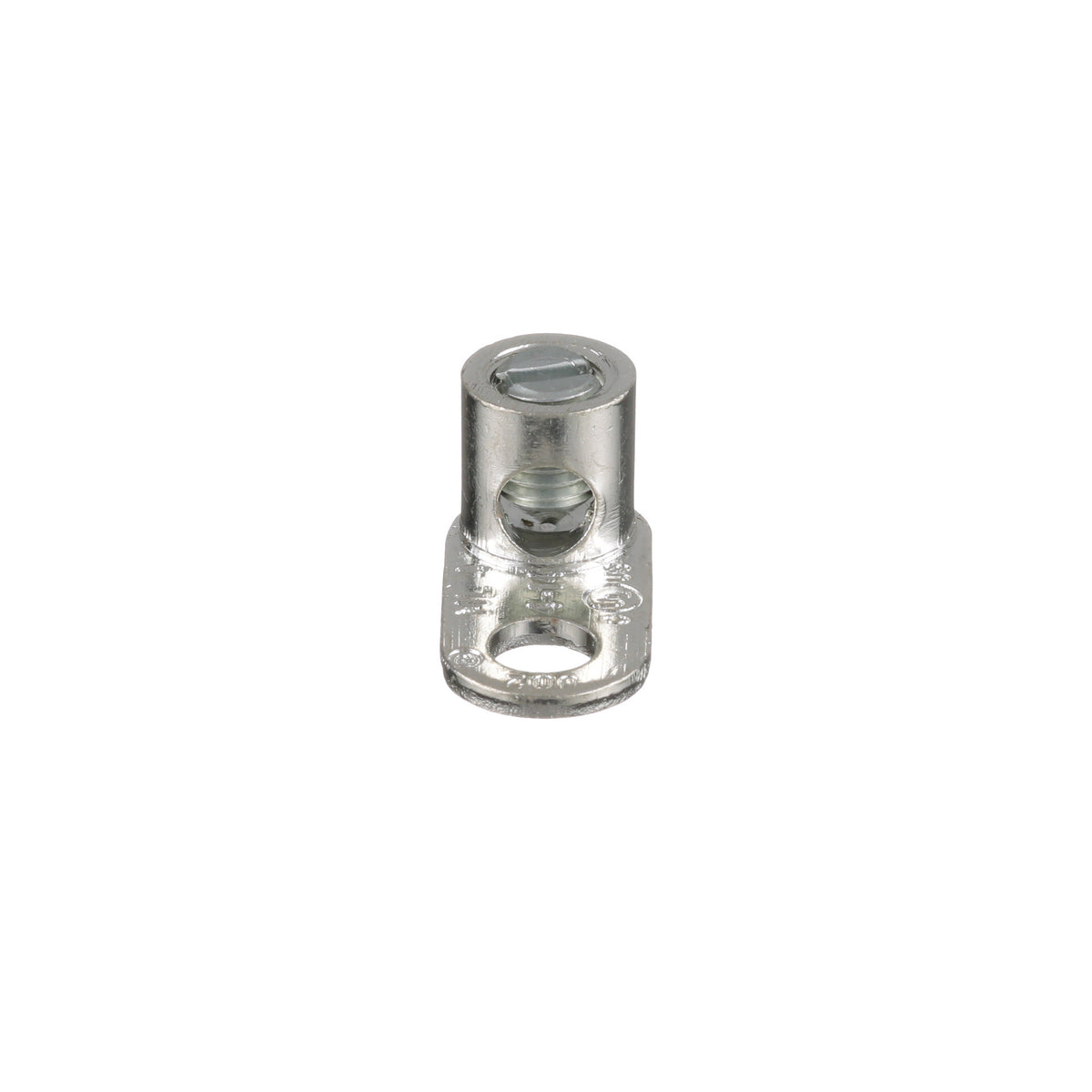

Panduit ML4T-CY | Pan-Lug™ Copper Straight Tongue Mechanical Lug
Description
Description
Panduit Pan-Lug Mechanical Terminal Lug, Single Barrel, Series: ML-T, Solid/Stranded Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.63 in L x 0.54 in W x 0.09 in THK Tongue, Straight Tongue, 600 VAC, Slotted Head Screw, 90 deg C, Cast Copper, Electro-Plated Tin, 1.11 in L x 0.54 in W x 0.55 in H
Ensure reliable connections in electrical panels with our copper straight tongue mechanical lug, visible wire window, strong anti-corrosion build, and space-saving design for flat contact.
The ML4T-CY Tin-Plated Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requ irements. The plated steel set screw provides a durable electrical contract between conductor and Lug. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
Panduit - ML4T-CY - Features
- Nylon coated high temperature rating galvanized steel cable
- Applications: Copper Code Conductor
- Made from high strength electrolytic copper with steel screw to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel setscrew provides high strength, durable electrical contact between conductor and connector
- Flat bottom allows for complete contact with mounting surface
- Compact design saves space
- Wire range taking, inspection window, high strength copper, compact design, flat for complete surface contact and tin plated
- Tin plated to inhibit corrosion
Specifications
Specifications
Panduit - ML4T-CY - Specifications
| Inspection Hole | No |
|---|---|
| Lug Material | Copper |
| Type | Mechanical |
| UNSPSC Code | 39121400 |
| Technical Information | cULus Listed for use up to 600V & Temperature Rated to 90C |
| Product Type | Mechanical Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Single Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Screw Type | Slotted |
| Maximum Copper Conductor Size (AWG SOL) | 4 |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Tongue Width (In.) | 0.54 |
| Tongue Width (mm) | 13.7 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.11 |
| Overall Length (mm) | 28.1 |
| Overall Height (In.) | 0.55 |
| Overall Height (mm) | 13.9 |
| UPC | 07498359629 |
Panduit - ML4T-CY - Package Information
| UPC | 07498359629 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0031 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0312 |
