Brand: Panduit
|
SKU:
327499
Panduit MLT10H-LP | Pan-Steel Mlt10H-Lp Cable Tie, Ss 304, Heavy, 10" Dia., Pk50
Regular price
$184.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLT10H-LP | Pan-Steel Mlt10H-Lp Cable Tie, Ss 304, Heavy, 1...
Regular price
$184.37
Unit price
Description
Description

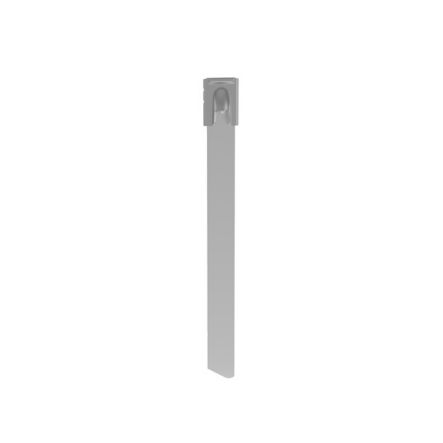

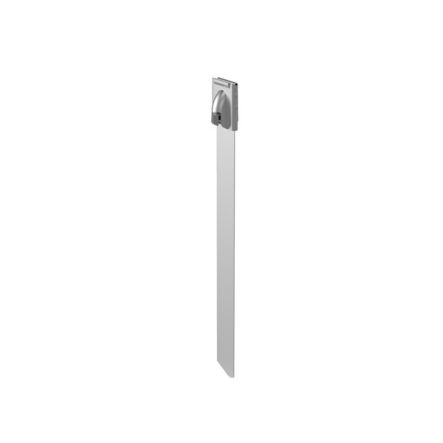

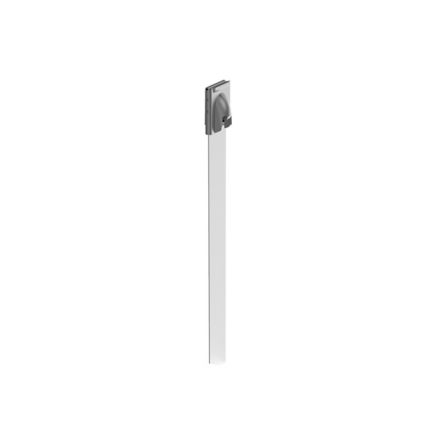

Panduit MLT10H-LP | Pan-Steel Mlt10H-Lp Cable Tie, Ss 304, Heavy, 10" Dia., Pk50
The MLT10H-LP Pan-Steel 304 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
Panduit - MLT10H-LP - Features
- Stainless steel cable tie, heavy, 10"; (254mm) max bundle diameter.
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Provides a strong, durable method of cable bundling
- Can be used in a wide range of indoor, outdoor, and underground (including direct burial) applications
- Smooth surfaces and rounded edges assures cable protection and worker safety
- Available in AISI 304 stainless steel for general-purpose applications
- Available in AISI 316 stainless steel for the most corrosive environments
Specifications
Specifications
Panduit - MLT10H-LP - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT10H-LP - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT10H-LP |
| Item Description | Pan-Steel Mlt10H-Lp Cable Tie, Ss 304, Heavy, 10" Dia., Pk50 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Metallic |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 33 |
| Overall Length (mm) | 838 |
| Body Width (In.) | 0.31 |
| Body Width (mm) | 7.9 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 10 |
| Maximum Bundle Diameter (mm) | 254 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 2000 |
| Minimum Loop Tensile Strength (lb) | 450 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG |
| Military Cross Reference Number | M23190/3-9 |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | General |
Panduit - MLT10H-LP - Package Information
| UPC | 07498354393 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0512 |
| Standard Ctn. Quantity | 250 |
| Standard Ctn. Volume (cf) | 0.2558 |
Panduit - MLT10H-LP - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
