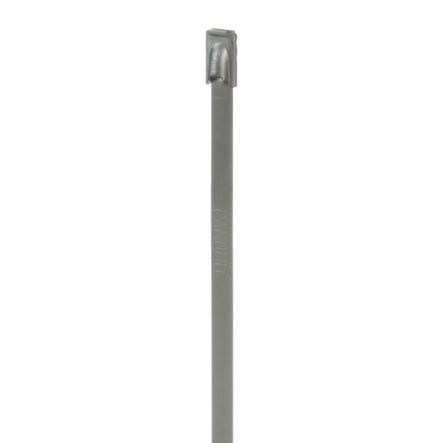

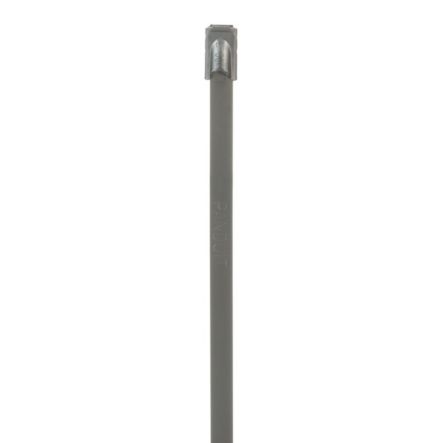

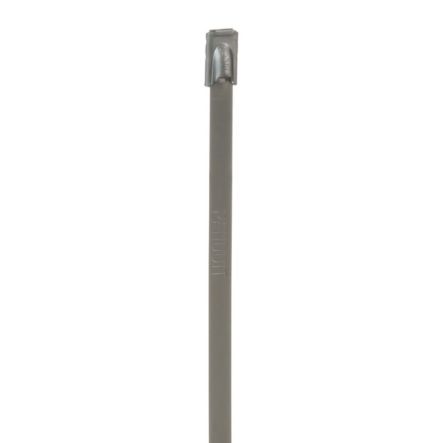

Panduit MLT1S-CP | Pan-Steel MLT1S-CP Cable Tie, SS 304, Standard, ...
Description
Description
The MLT1S-CP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT1S-CP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
Panduit MLT1S-CP - CABLE TIE - STAINLESS STEEL TIE 5" LONG
Specifications
Specifications
Panduit - MLT1S-CP - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT1S-CP - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT1S-CP |
| Item Description | Pan-Steel MLT1S-CP Cable Tie, SS 304, Standard, 1" Dia., PK100 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Metallic |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 5 |
| Overall Length (mm) | 127 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.25 |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25.4 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 889 |
| Minimum Loop Tensile Strength (lb) | 200 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,BV,LR,DNV |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | General |
Panduit - MLT1S-CP - Package Information
| UPC | 07498354409 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0154 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0768 |
Panduit - MLT1S-CP - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
