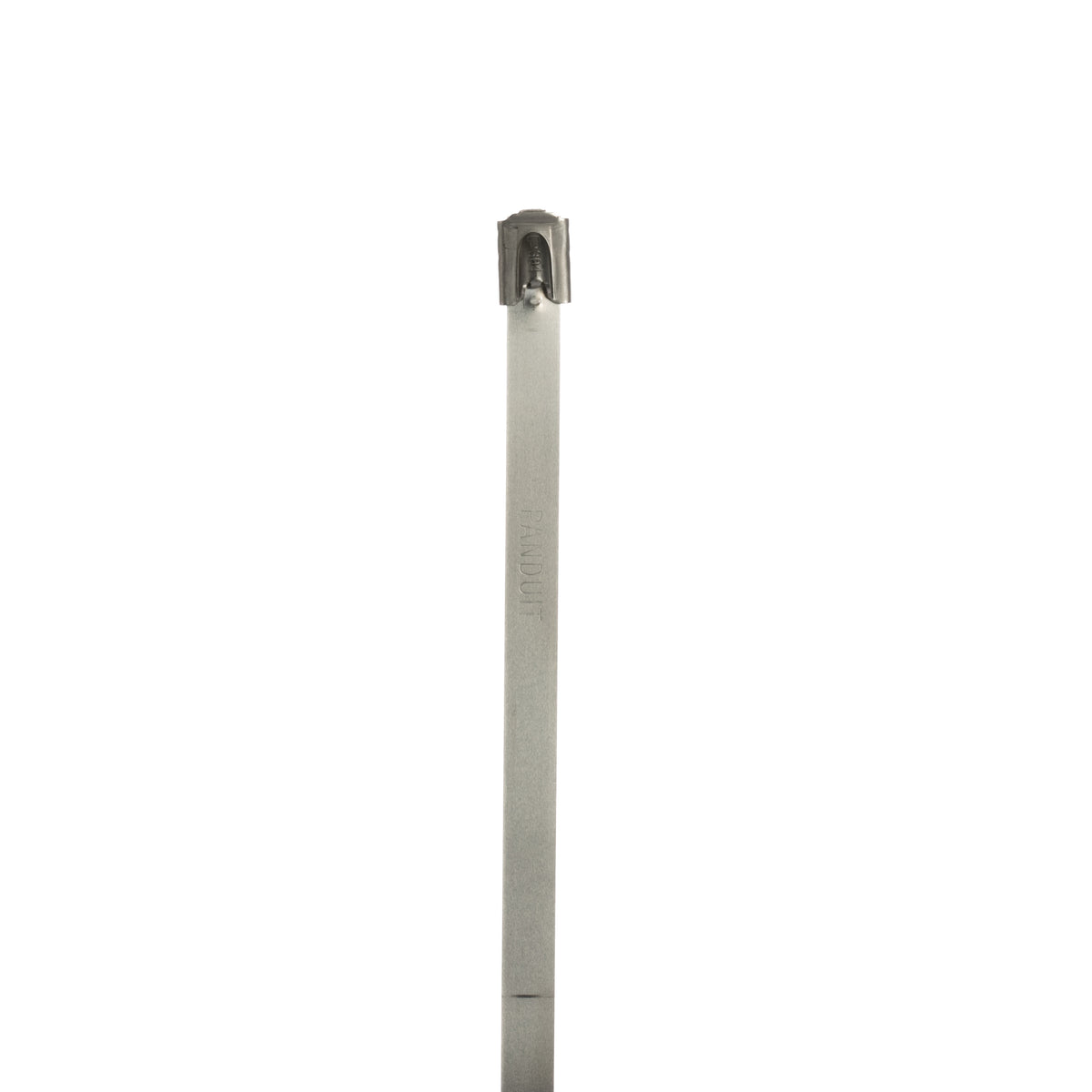

Panduit MLT4LH-LP | Pan-Steel® Self-Locking Cable Tie
Description
Description
Panduit Pan-Steel Cable Tie, Light Heavy, Series: MLT, 14.3 in Length, 1/4 in Width, 0.01 in Thickness, 4 in Bundle Dia, Lock Mechanism: Self Locking, 250 lb Tensile, -76 to 1000 deg F, 304 Stainless Steel, Natural
Master complex cable management projects with our self-locking cable tie. Built from stainless steel for maximum durability, it excels in extreme conditions.
The MLT4LH-LP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a stro ng, durable method of cabling bundle. The MLT4LH-LP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
Panduit - MLT4LH-LP - Features
- Applications: General
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Provides a strong, durable method of cable bundling
- Smooth surfaces and rounded edges assures cable protection and worker safety
Specifications
Specifications
Panduit - MLT4LH-LP - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Product Type | Cable Tie |
| Sub Brand | Pan-Steel® |
| Color | Metallic |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 362 |
| Body Width (In.) | 0.25 |
| Body Width (mm) | 6.4 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498342170 |
Panduit - MLT4LH-LP - Package Information
| UPC | 07498342170 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.0241 |
| Standard Ctn. Quantity | 250 |
| Standard Ctn. Volume (cf) | 0.1203 |
Panduit - MLT4LH-LP - Videos
| Panduit MLT4LH-LP Video 1 | Click to View |
|---|---|
| Panduit MLT4LH-LP Videos | Click to View |
