Brand: Panduit
|
SKU:
158457

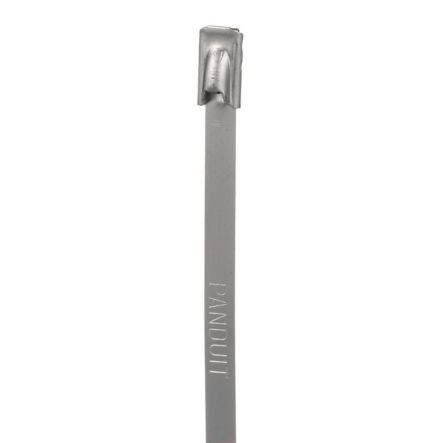

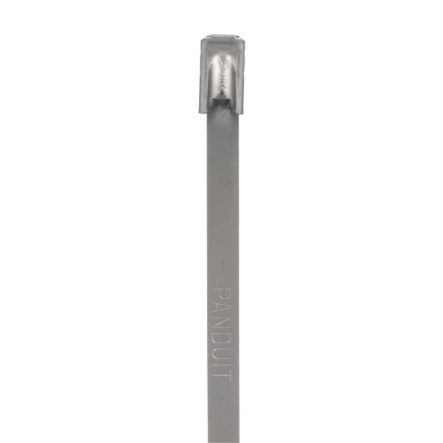

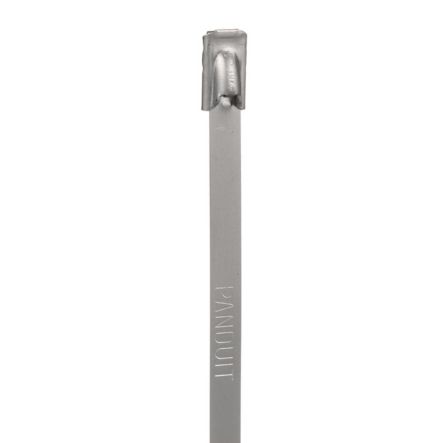

Panduit MLT4S-CP | Pan-Steel MLT4S-CP Cable Tie, SS 304, Standard, 4" Dia., PK100
Regular price
$158.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLT4S-CP | Pan-Steel MLT4S-CP Cable Tie, SS 304, Standard, ...
Regular price
$158.94
Unit price
Description
Description
Panduit MLT4S-CP | Pan-Steel MLT4S-CP Cable Tie, SS 304, Standard, 4" Dia., PK100
The MLT4S-CP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT4S-CP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
Panduit - MLT4S-CP - Features
- MLT Tie, 304 Stainless Steel, Standard Cross Section, 14.3 Inches (362.0mm) Length x 0.18 Inch (4.6mm) Width x 0.010 Inch (0.25mm) Thickness. Self-locking head design speeds installation and locks into place at any length along the tie body. Provides a st
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Provides a strong, durable method of cable bundling
- Can be used in a wide range of indoor, outdoor, and underground (including direct burial) applications
- Smooth surfaces and rounded edges assures cable protection and worker safety
- Available in AISI 304 stainless steel for general-purpose applications
- Available in AISI 316 stainless steel for the most corrosive environments
Specifications
Specifications
Panduit - MLT4S-CP - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT4S-CP - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT4S-CP |
| Item Description | Pan-Steel MLT4S-CP Cable Tie, SS 304, Standard, 4" Dia., PK100 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Metallic |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 362 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 890 |
| Minimum Loop Tensile Strength (lb) | 200 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,SAE,BV,LR,DNV |
| Military Cross Reference Number | M23190/3-2 |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | General |
Panduit - MLT4S-CP - Package Information
| UPC | 07498354402 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0238 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.1191 |
Panduit - MLT4S-CP - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
